10 Inch Yarn Twisting And Doubling Machine For Rope

10 Inch Yarn Twisting And Doubling Machine For Rope is mainly for rope ply twisting, small 2-3mm fishing rope twisting.

Product Detail

10 Inch Yarn Twisting And Doubling Machine For Rope

Brief Introduction-10 Inch Yarn Twisting and Doubling Machine

This 10 Inch Yarn Twisting And Doubling Machine For Rope is mainly for rope ply twisting, small 2-3mm fishing rope twisting..

Spindles quantity are according to production capacity per hour.

Technical data-10 Inch Yarn Twisting Machine

Model	HDRT-723
Quantity of spindle	6 spindles/group. Max.54 spindles
Lifting movement of traveler ring	300mm
Speed of spindle	1800-2100rpm
Dia of roller	57mm
Distance of spindle	375mm
Dia of traveler ring	254mm
Twisting direction	Z or S
Suitable scope	21 counts 5 strands~180 strands yarn 850D~15000D fiber 36 tex 21~90 strands twisting or twine
Bobbin size(OD×ID×H1×H2)	Ø225×Ø22.5×305×345mm

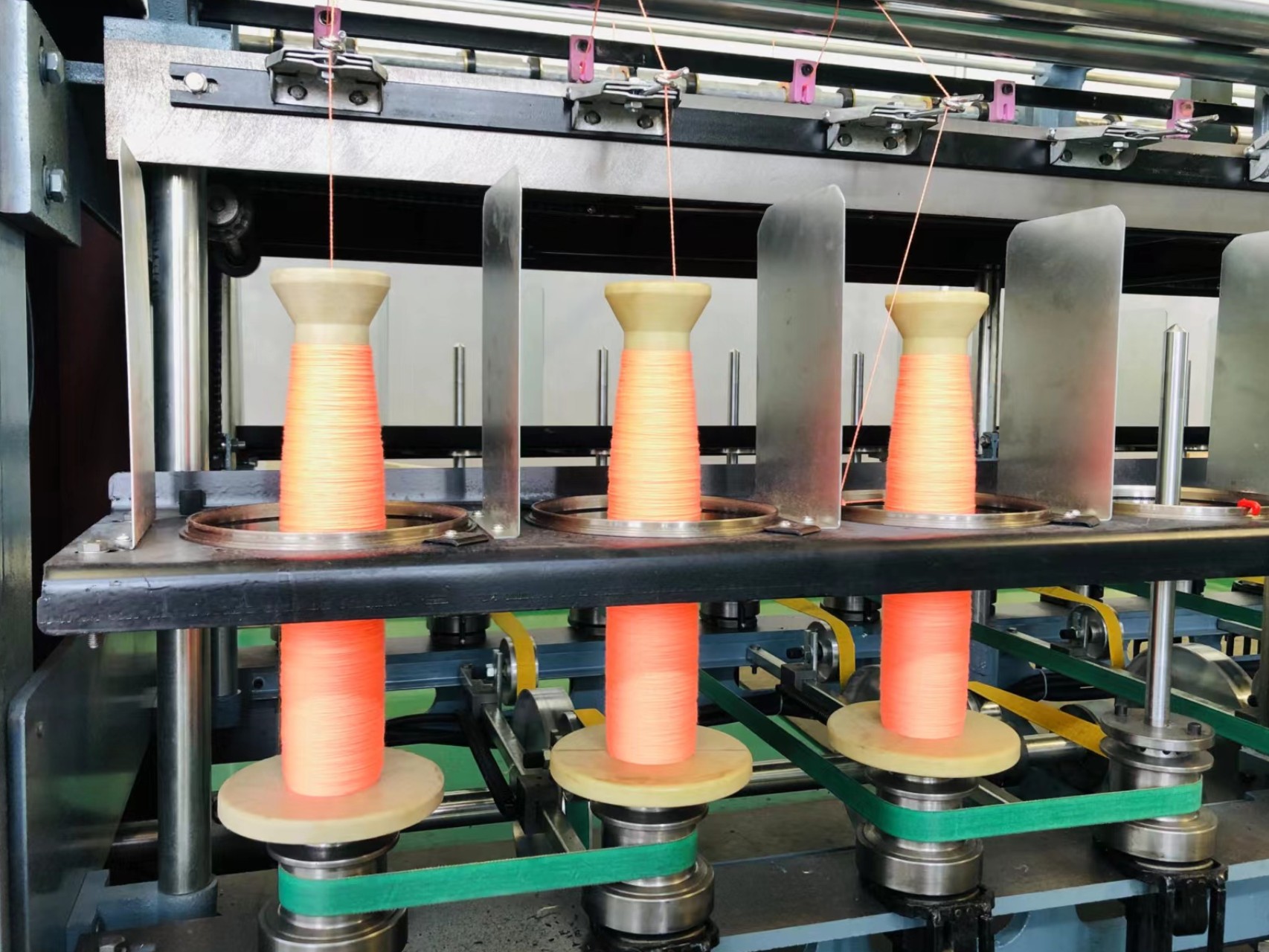

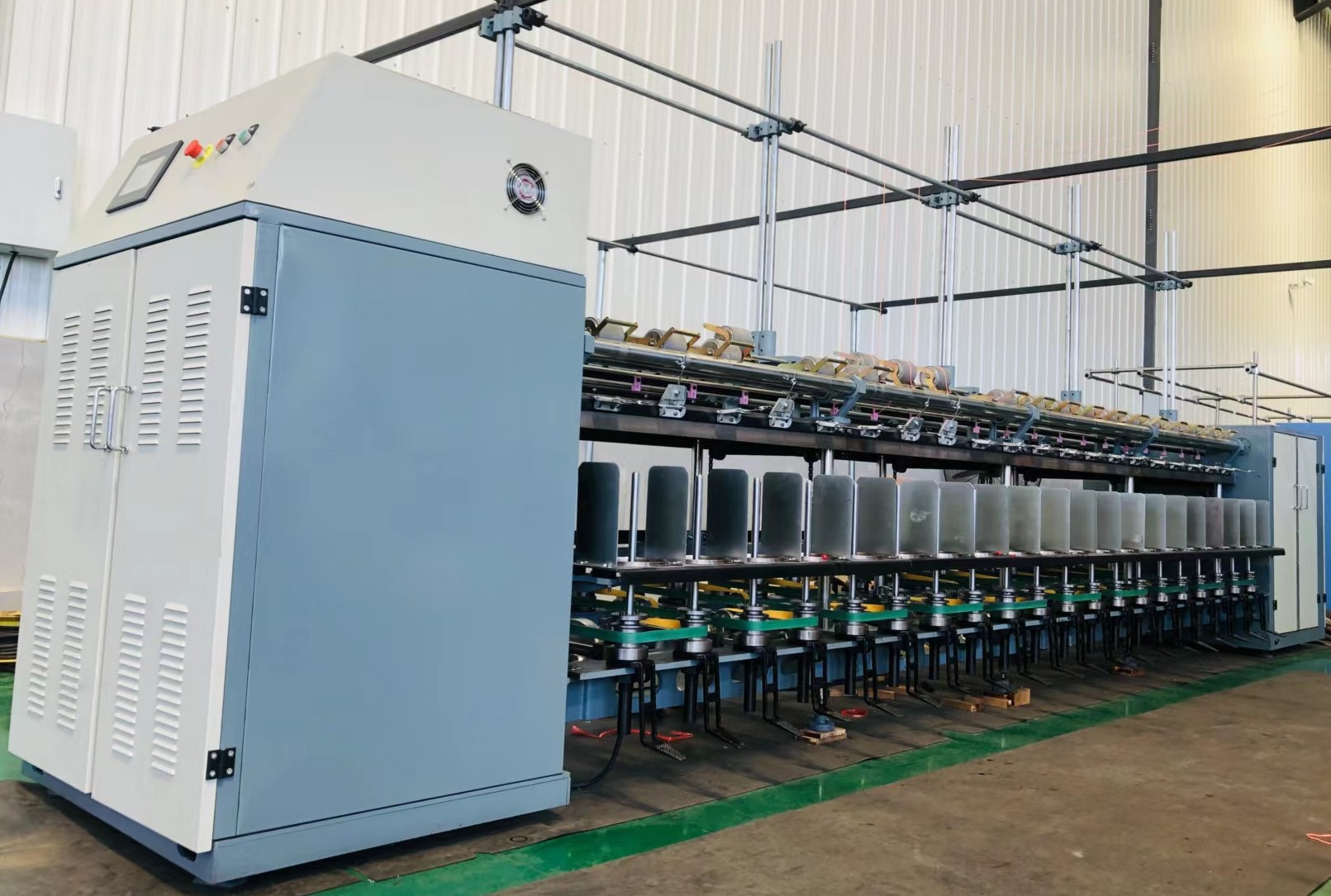

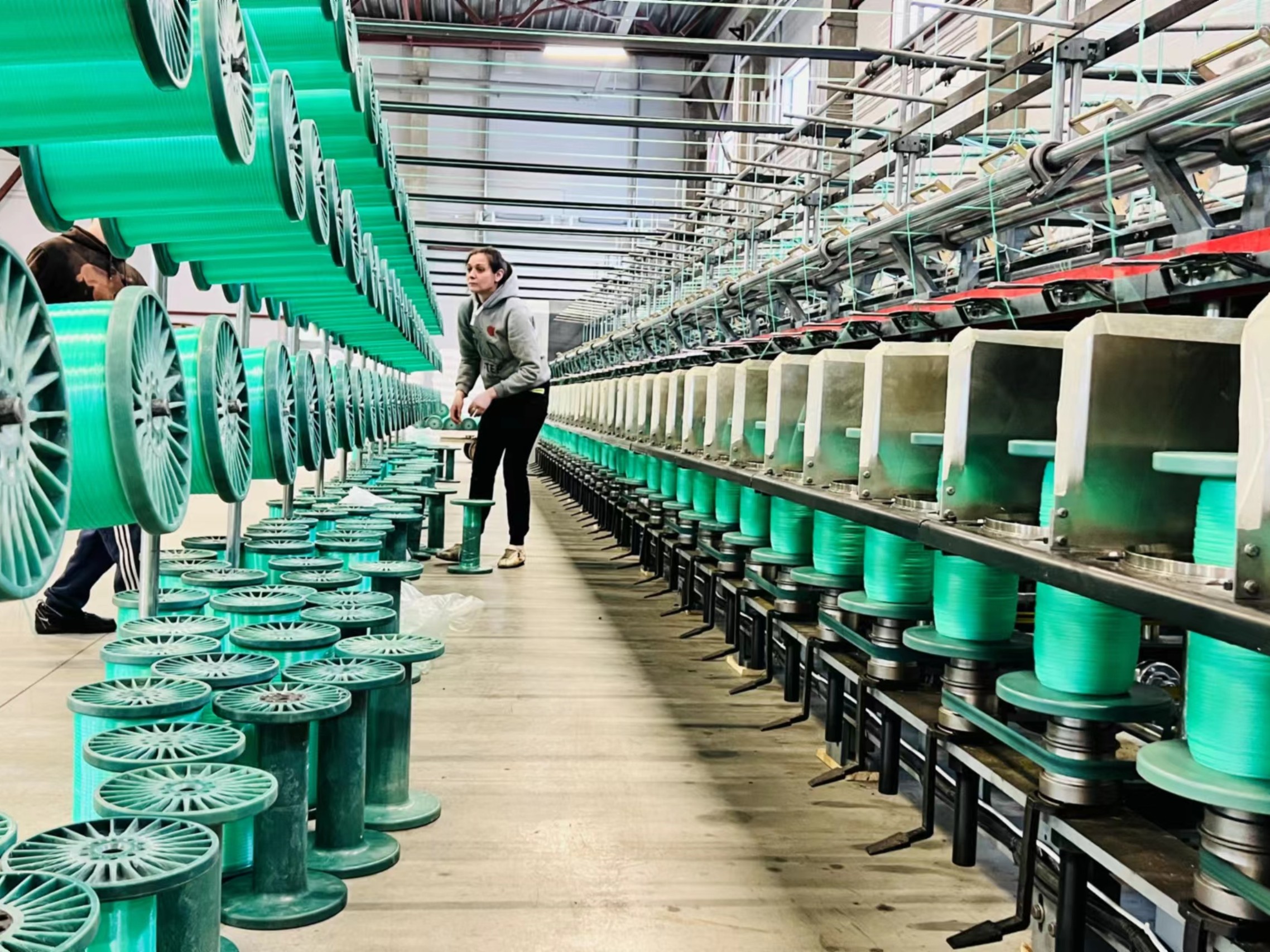

Detail Photos-10 Inch Ring Twisting Machine

If you need 10 Inch Yarn Twisting And Doubling Machine For Rope video and price, welcome your inquiry!
