Brief Introduction-Plastic Rope Twister
1. Rope diameter from 18mm up to 26mm.
2. Suitable material: HDPE, PP , PET , nylon, polyester ,cotton, sisal ,jute, coconut , banana, recycled tape,no-woven tape, etc. Monofilament, multifilament, nature fiber, the machine has wide application scope.
3. For rope structure: 3 strand, 4 strand, 4 strand with core.
4. Application: rope twisting and stranding production.
5. Support rope samples & design drawing customize machine.
Technical Data-Rope Twister Machine
Rope range | Φ18-26mm | |
Lay range | 40-105mm | |
Rope lay | S or Z | |
Take-up, coiling head | Φ740mm, traverse 430mm,barrel Φ150mm | |
Take-up, max. weight | Polypropylene 70kg | |
Pay-off packages | M66-3 | M66-4 |
3×46 , max.Φ175×300mm traverse | 4×46,max.Φ175×300mm traverse | |
3×34 , max.Φ225×300mm traverse | 4×34,max.Φ225×300mm traverse | |
Performance & advantages
High productivity
Sprocket drive
Rigid construction
Direct coiling head winding
With digital length counter meter
Door sensor, protective door with laser cutting technology
Low noise level, low maintenance, easy operation system
Thermal refining for shaft parts, quenching treatment for gear and sprocket wheel

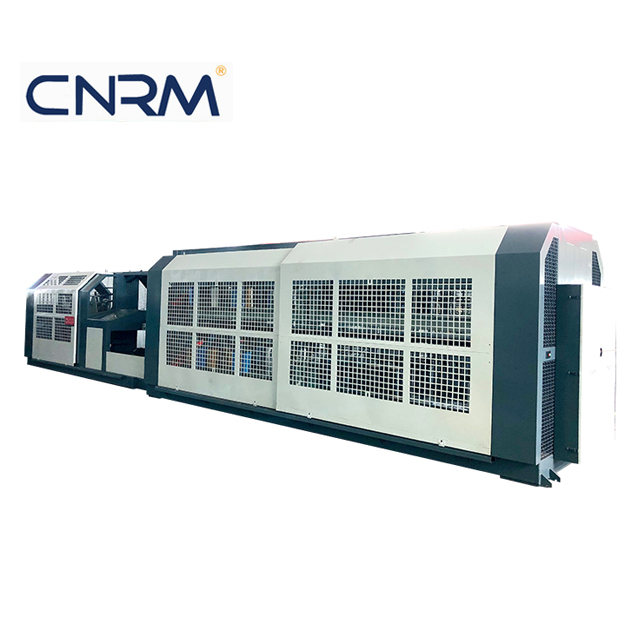

Detail Photo of CNRM Rope Twister

If you need 18-26MM Rope Twister CNRM HDTM-M66 Model, Welcome to inquire!
