2024 Brand Plastic/PP/Nylon/Polypropylene Raffia Yarn Rope Making Machine (500m per kg)
Brief Introduction-Plastic PP Polypropylene Raffia Yarn Making Machine
This 2024 Brand Plastic/PP/Nylon/Polypropylene Raffia Yarn Rope Making Machine is mainly for making different size rafia rope, baler twine, rafia yarn, rafia string for agriculture rafia use. This is complete production line with turnkey serivice. is mainly suitable for new users and producers who need to increase scale and production. This baler twine production line introduces European technology and processing techniques, combined with actual rope production needs, and is more suitable for novice use and operation.
Our company also provides production line usage technology and twine processing technology, complete processing technology and rich after-sales service, to help you explore a more competitive rope market.

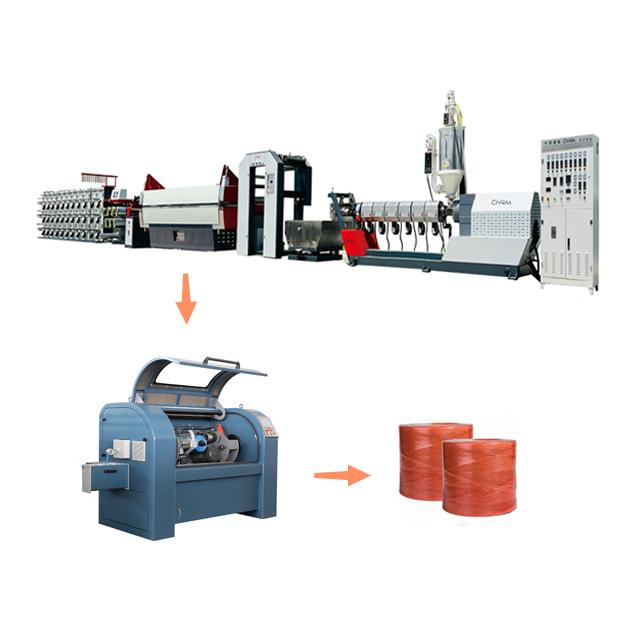

Production Process-Polypropylene Raffia Rope Production Line

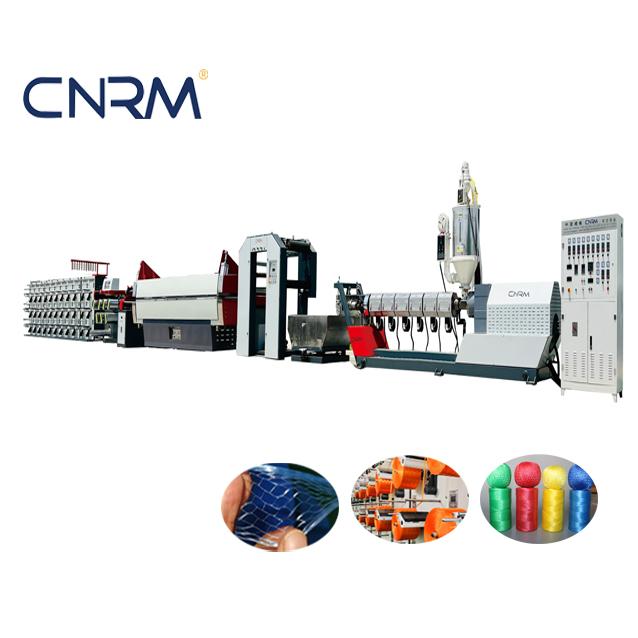

Extrusion Machine for Raffia Yarn and Rope
Technical Data-PP Polypropylene Raffia Yarn Extrusion Line
Item | HDSLJ-70×33 | HDSLJ-80×33 | HDSLJ-90×33 | HDSLJ-100×33 |
T-die width | 600mm | 900mm | 1000mm | 1200mm |
Screw diameter | 70mm | 80mm | 90mm | 90mm |
Fiber type | PP/PE/HDPE Tape, Raffia Twine |
Ratio of L/D | 33:1 | 33:1 | 33:1 | 33:1 |
Rotation speed of screw | 20-90r/min | 20-90r/min | 20-90r/min | 20-90r/min |
Drawing ratio | 4-10 | 4-10 | 4-10 | 4-10 |
Cooling mode | Water cooling | Water cooling | Water cooling | Water cooling |
Power consumption | 100kw/30kw | 130kw/40kw | 150kw/50kw | 220kw/60kw |
Max output capacity | 1200kg/24h | 2000kg/24h | 3000kg/24h | 4000kg/24h |
Machine weight | 10tons | 12 tons | 15 tons | 18 tons |
Machine dimension(L×W×H) | 25×2×2m | 26×2.2×2m | 27×2.2×2m | 28×2.2×2m |
Performance & Advantages-Raffia Yarn Extruder:
·CNRM extrusion line division has the solution for the production of thermoplastic raffia
tape for a wide range of technical industrial application.
· PP for fibrillated tape for baler twine/rope and geotextile
Optional Equiment:
· HMI+PLC system
· Meter pump
·Auto screen changer
·Gravimetric dosing system
·Edge yarn crush system

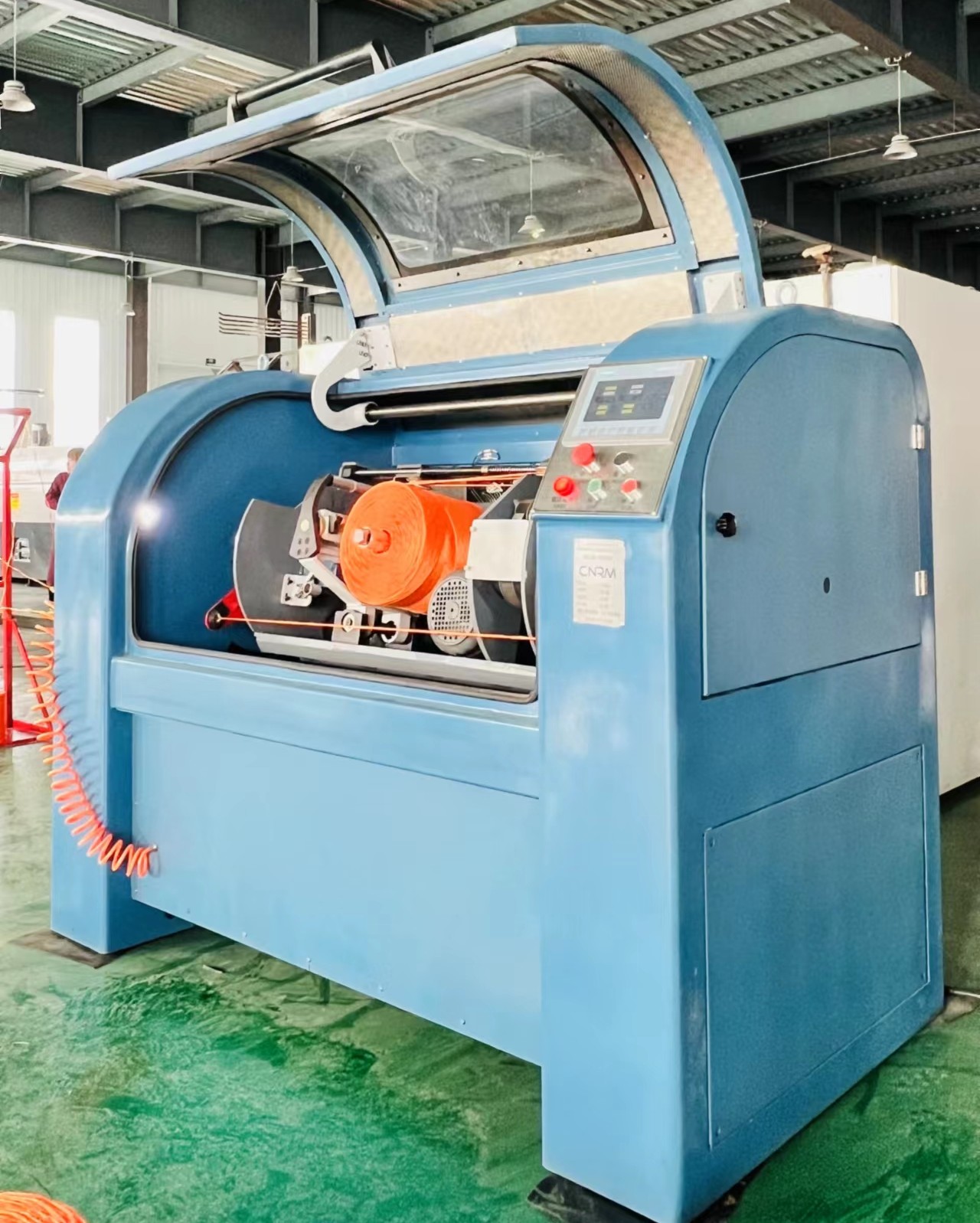

High Speed Twister for Raffia Yarn and Rope
Technical data
Item | Specification |
Model | HDST-H01 |
Maximum output power of the motor | 13kw |
Spool size | 8inch，10inch，12inch |
Applicable yarn range | 18,000d-70,000d |
Twist range | 20-135tpm |
Twist direction | S or Z |
Flyer rotation | 3000rpm |
Production capacity | 150m/min-200m/min |
Main electric part | Siemens |
Transmission type | Synchronous belt |
Machine dimensions（L×W×H） | 2350×1050×1450mm |
Machine weight | 1330kg |
Performance & advantages
Suitable for in-line system
For production of rope yarns,tying twine and baler twine
For plying pre-twsited yarns
High quality tubeless and tube package
HMI+PLC system
Adjustable length counter for automatic stop at pre-set length

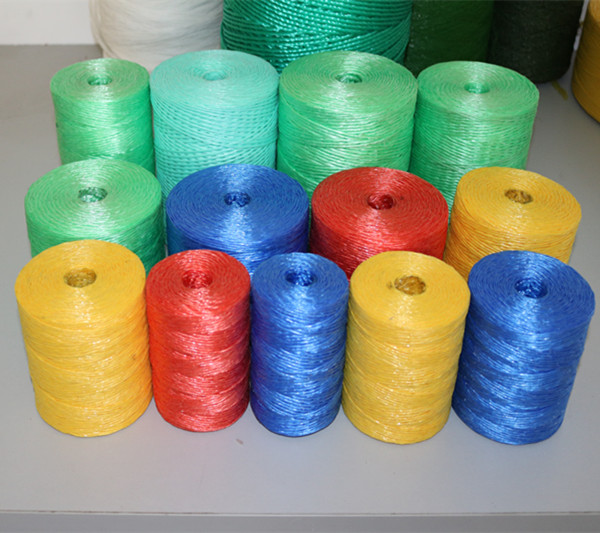

Production Range-Agriculture Baler Twine Production Line
Twine Range：PP Polypropylene Twine, HDPE PP Mixed Material Twine, Recycled Twine.
Twine Type: Split film, fibrillated yarn, flat film
Size Range: 1g/m-8g/m.
Twine Type: Raffia yarn, raffia twine, raffia rope, tomato baler twine, hay baler twine, squre baler twine.
If you need 2024 Brand Plastic/PP/Nylon/Polypropylene Raffia Yarn Rope Making Machine, welcome your inquiry!
