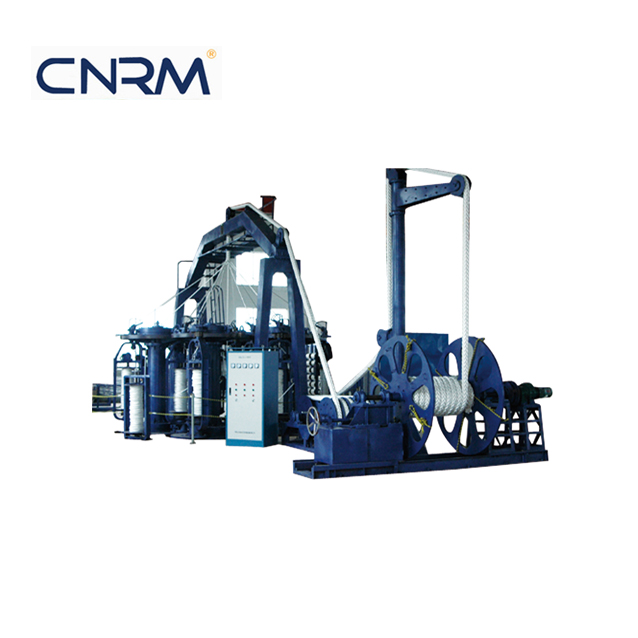

CNRM HDBM 8 /12 Strand Mooring Hawser Rope Braiding Machine
CNRM HAWSER MACHINE strander and rope-layer

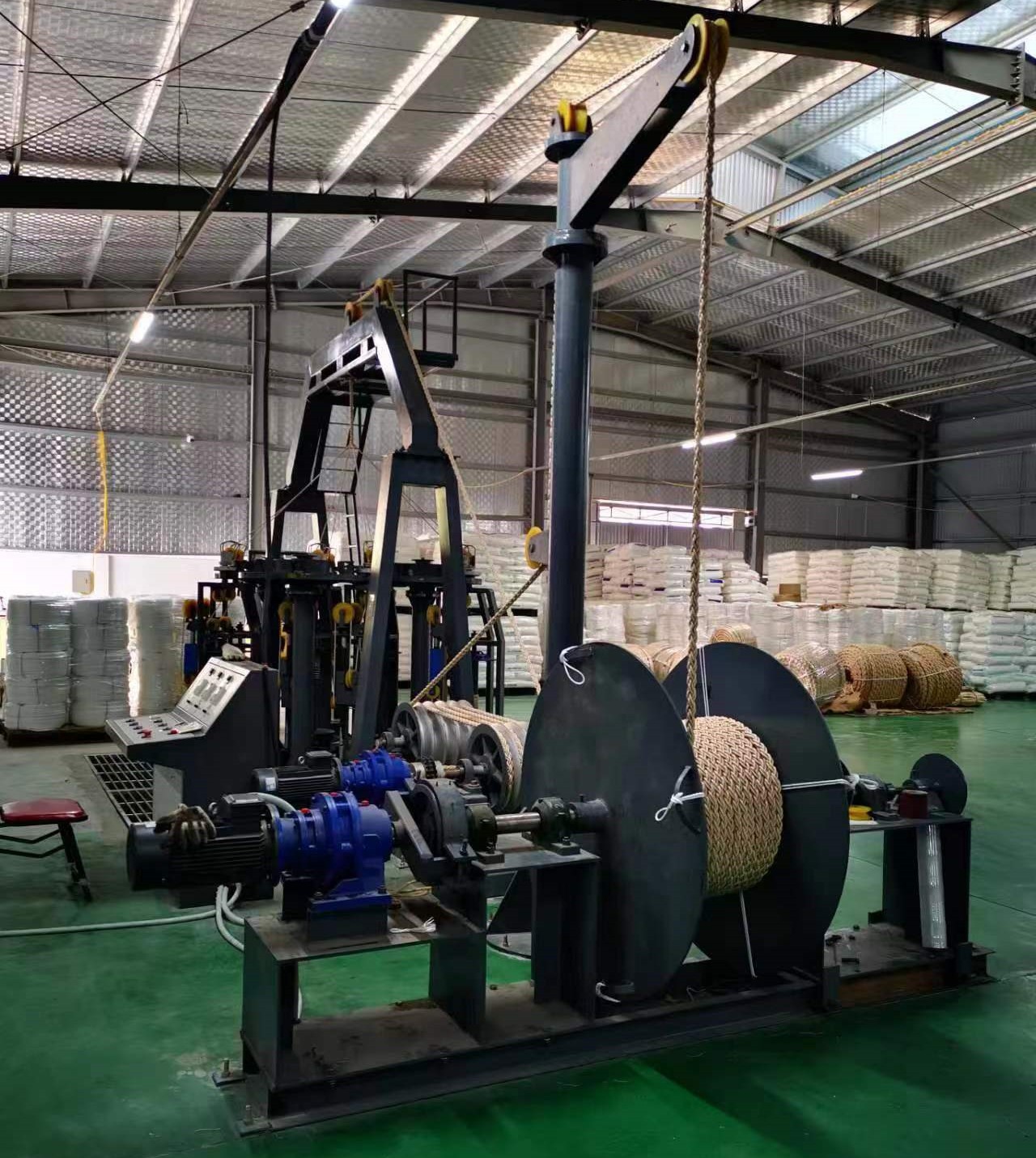

The whole host is composed of the host, traction, rope winding, and strand making machine. The main engine has high manufacturing precision, adopts world-famous bearings, runs smoothly, has high speed, and greatly improves production efficiency.
Mainly for 8 strand and 12 strand mooring rope from different size.
Technical data
Model | Size Range | Speed Rotation | Max.Coil Length | TotalMotor Power | Rope Machine Dimension | Strander Machine Dimension |
HDBM-8H16/32 | Φ16-32mm | 5-24r/min | 220m | 15.7kw | 8000×3000×4000mm | 4000×4000×2000mm |
HDBM-8H20/50 | Φ20-50mm | 5-18r/min | 220m | 17.2kw | 10000×5000×4500mm | 4000×4000×2000mm |
HDBM-8H30/80 | Φ30-80mm | 5-10r/min | 220m | 23.7kw | 12000×5000×5000mm | 4500×5500×2200mm |
HDBM-8H40/100 | Φ40-100mm | 4-8r/min | 220m | 27.2kw | 13000×5000×5500mm | 4500×5500×2200mm |
HDBM-8H50/120 | Φ50-120mm | 4-8r/min | 220m | 27.2kw | 15000×6000×6000mm | 5000×6000×2500mm |
HDBM-8H60/150 | Φ60-150mm | 4-7r/min | 220m | 35.2kw | 16000×6800×6500mm | 6000×6000×2500mm |
Model | Size Range | Speed Rotation | Max.Coil Length | TotalMotor Power | Rope Machine Dimension | Strander Machine Dimension |
HDBM-12H20/50 | Φ20-50mm | 5-24r/min | 220m | 17.2kw | 9000×3500×4000mm | 4000×4000×2000mm |
HDBM-12H20/64 | Φ20-64mm | 5-18r/min | 220m | 19.2kw | 10000×5000×4500mm | 4000×4000×2000mm |
HDBM-12H30/100 | Φ30-100mm | 3-10r/min | 220m | 27.2kw | 13000×6000×5500mm | 4500×5500×2200mm |
HDBM-12H40/120 | Φ40-120mm | 3-9r/min | 220m | 27.2kw | 15000×7000×5500mm | 4500×5500×2200mm |
HDBM-12H50/160 | Φ50-160mm | 3-9r/min | 220m | 31.2kw | 15000×7000×6000mm | 4500×5500×2500mm |
HDBM-12H60/200 | Φ60-200mm | 3-8r/min | 220m | 32.2kw | 15000×7000×6500mm | 5000×6000×2500mm |
HDBM-12H80/300 | Φ80-300mm | 3-7r/min | 220m | 36.2kw | 18000×10000×7500mm | 6000×7000×3900mm |
If you need CNRM HDBM 8 /12 Strand Mooring Hawser Rope Braiding Machine video and price, welcome your inquiry!
