Brief Introduction

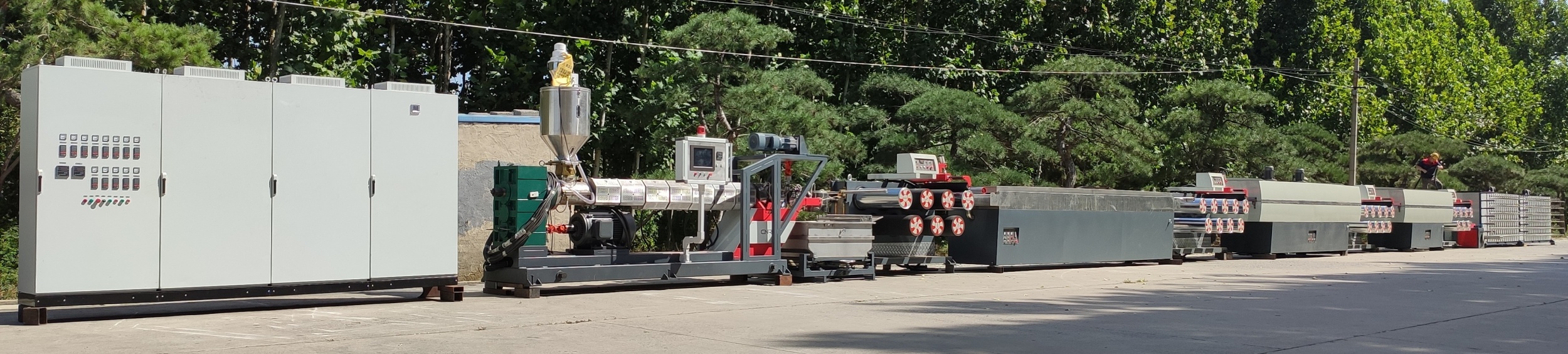

CNRM High Strength Hdpe PP Monofilament Yarn Extruder Machine has the solution for the production of thermoplastic fiber monofilament for a wide range of technical industrial application.
This monofilament yarn extruder machine is mainly for rope net making.
It is suitable for PP(PP Monofilament Extruder Machine), HDPE(Hdpe Monofilament Extruder Machine)Material,PP PE Mixed Material (PP PE Monofilament Extruder Machine), also recycled material.
Technical Data-Monofilament yarn extruder Machine
Item | HDYSJ-70×33 | HDYSJ-80×33 | HDYSJ-90×33 |
Screw diameter | 70mm | 80mm | 90mm |
Fiber diameter | 0.13-0.35mm | 0.13-0.35mm | 0.13-0.35mm |
Fiber type | PP/PE/HDPE Monofilament Yarn For Making Rope or Net | ||
Ratio of L/D | 33:1 | 33:1 | 33:1 |
Rotation speed of screw | 20-90r/min | 20-90r/min | 20-90r/min |
Drawing ratio | 4-10 | 4-10 | 4-10 |
Cooling mode | Water cooling | Water cooling | Water cooling |
Power consumption | 100kw/30kw | 130kw/40kw | 150kw/50kw |
Max output capacity | 1200kg/24h | 2000kg/24h | 3000kg/24h |
Machine weight | 10 tons | 12 tons | 15 tons |
Machine dimension(L×W×H) | 20×3×2.5m | 23×3×2.5m | 27×3×2.5m |
Optional Winder of Monofilament Machine:

Optional Equiment of Monofilament Extruder Machine:
· HMI+PLC system
· Meter pump
·Auto screen changer
·Gravimetric dosing system

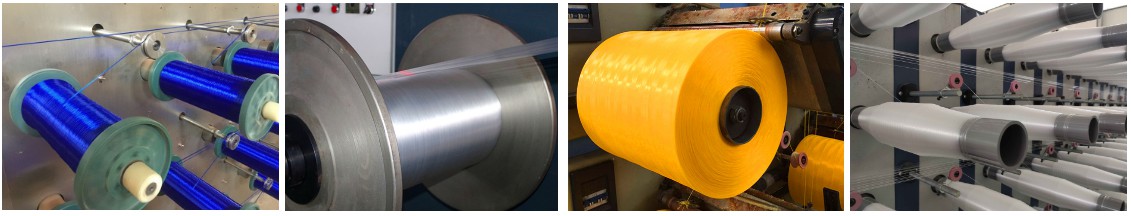

Application of PP PE Monofilament Extruder

If you need Monofilament Yarn Extruder machine price and video, Welcome to inquire!
