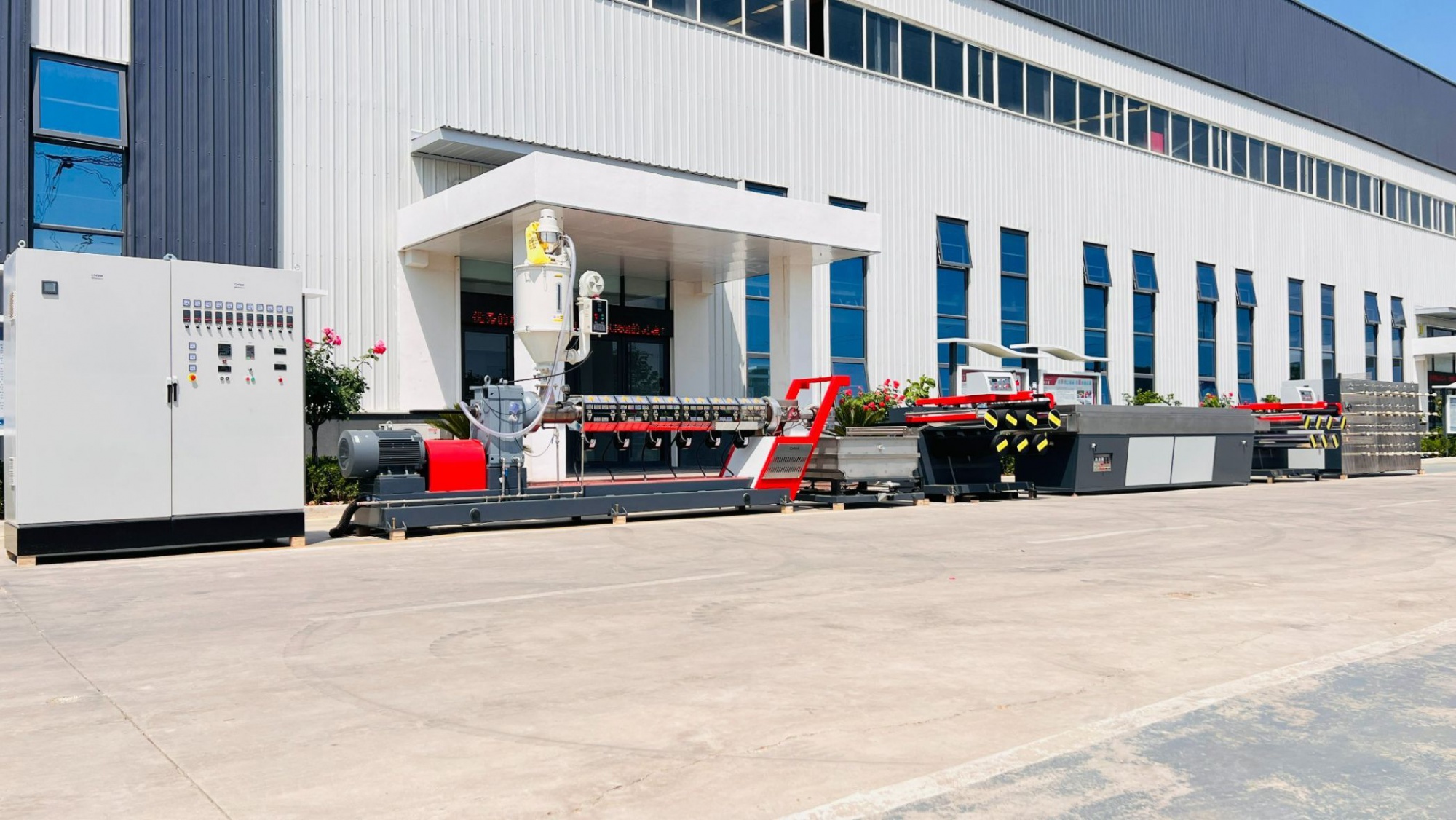

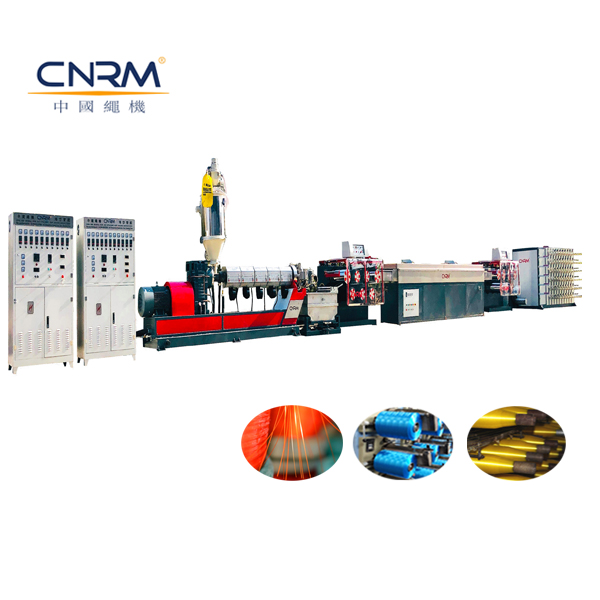

CNRM PP/PE/PET Filament Extrusion Line for Rope Netting Broom Brush Carpet
Brief Introduction
CNRM PP/PE/PET Filament Extrusion Line for Rope Netting Broom Brush Carpet is high-efficiency, energy-saving and easy to operate. It produces uniform, high-strength plastic monofilaments for fishing nets, ropes, brooms, brushes and agricultural nets. Stable running, precise diameter control, full technical support and customized solutions available. Competitive price, reliable quality, ideal for your plastic filament production business.
1. Raw material: PP(polypropylene), HDPE( polyethylene) ,PE, PET , nylon.
100% new or recycled mixed material
2. Yarn size: Diameter 0.13-0.5mm
3. Capacity: 1200-4000KG/24H
4. Application: Rope, Net, Mesh, Bag, Broom, Brush.
Technical data-CNRM PP/PE/PET Filament Extrusion Line
| Item | HDYSJ-70*33 | HDYSJ-80×33 | HDYSJ-90×33 |
| Screw diameter | 70mm | 80mm | 90mm |
| Fiber diameter | 0.13-0.35mm | 0.13-0.35mm | 0.13-0.35mm |
| Ratio of L/D | 33:1 | 33:1 | 33:1 |
| Rotation speed of screw | 20-90r/min | 20-90r/min | 20-90r/min |
| Drawing ratio | 4-10 | 4-10 | 4-10 |
| Heating Type | Hot Water Tank/Hot Oven | Hot Water Tank/Hot Oven | Hot Water Tank/Hot Oven |
| Power consumption | 100kw/30kw | 130kw/40kw | 150kw/50kw |
| Max output capacity | 1200kg/24h | 2000kg/24h | 3000kg/24h |
| Machine dimension(L×W×H) | 20×3×2.5m | 23×3×2.5m | 27×3×2.5m |
| Machine weight | 10 tons | 12 tons | 15 tons |
Optional Equiment of CNRM PP/PE/PET Filament Extrusion Line
· HMI+PLC system
· Meter pump
·Auto screen changer
·Gravimetric dosing system

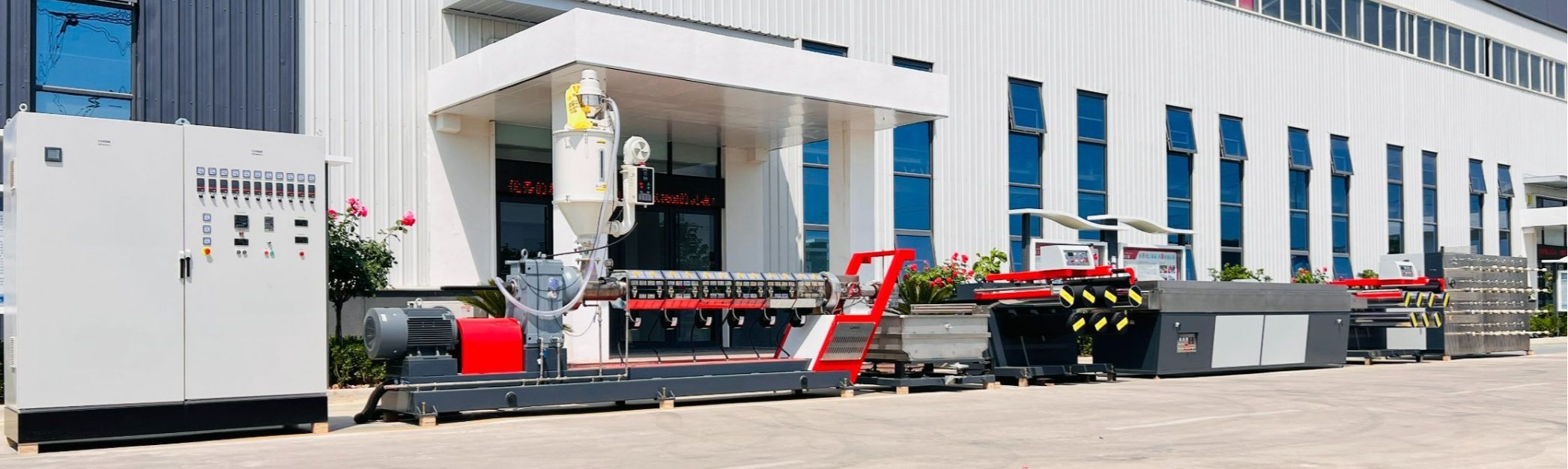

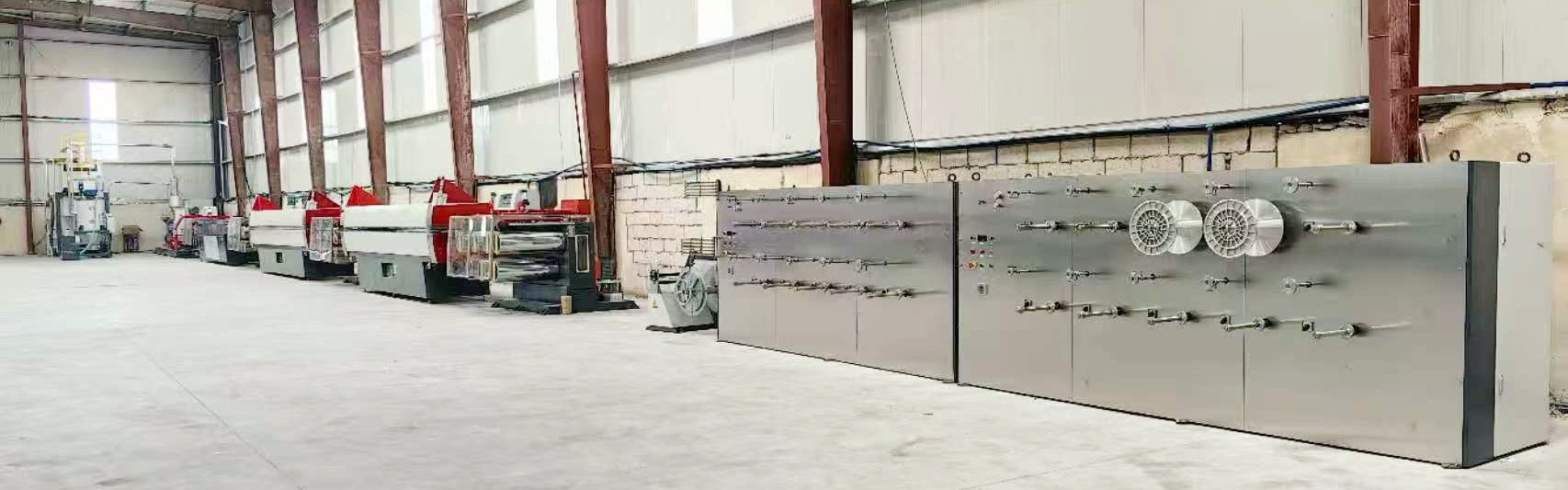

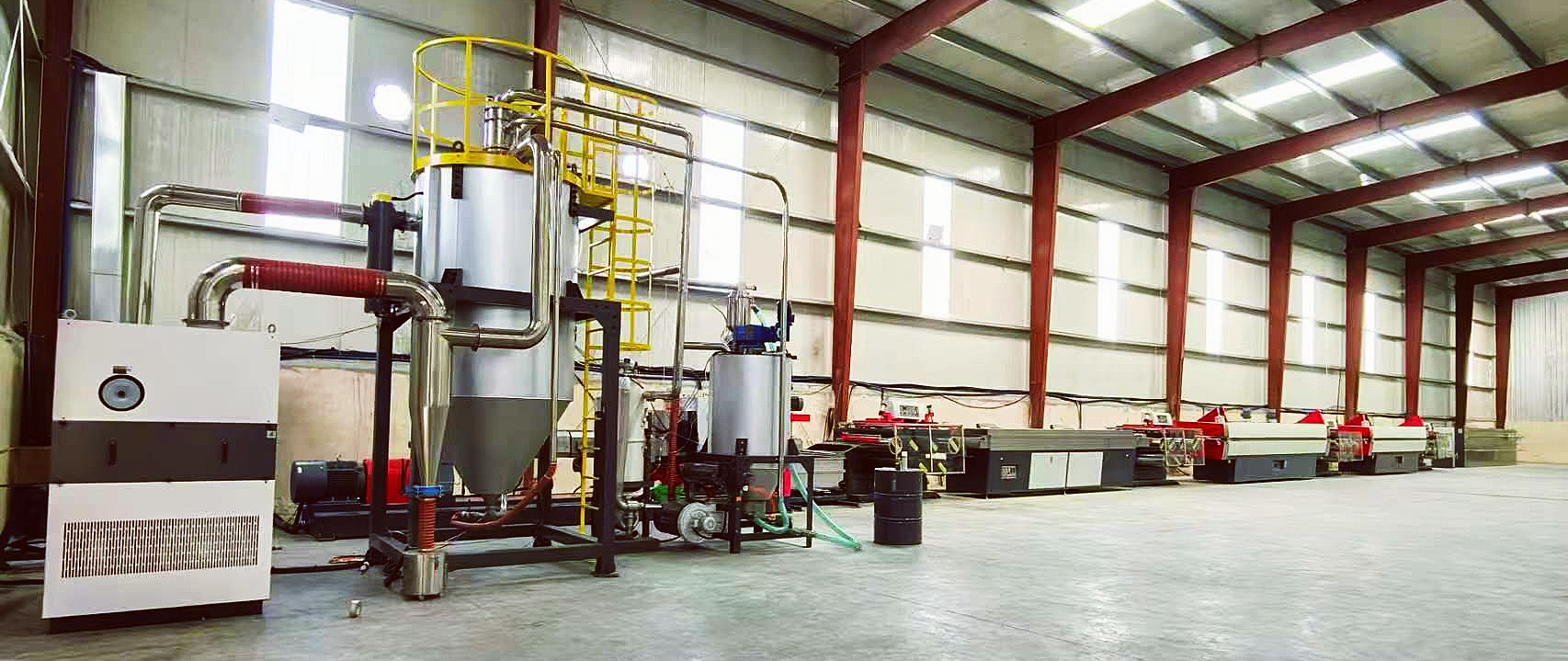

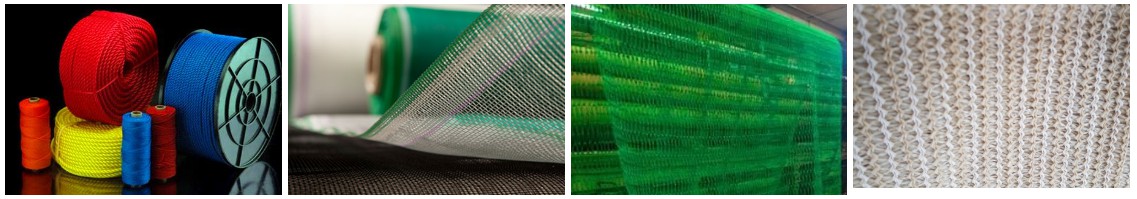

Application-CNRM PP/PE/PET Filament Extrusion Line

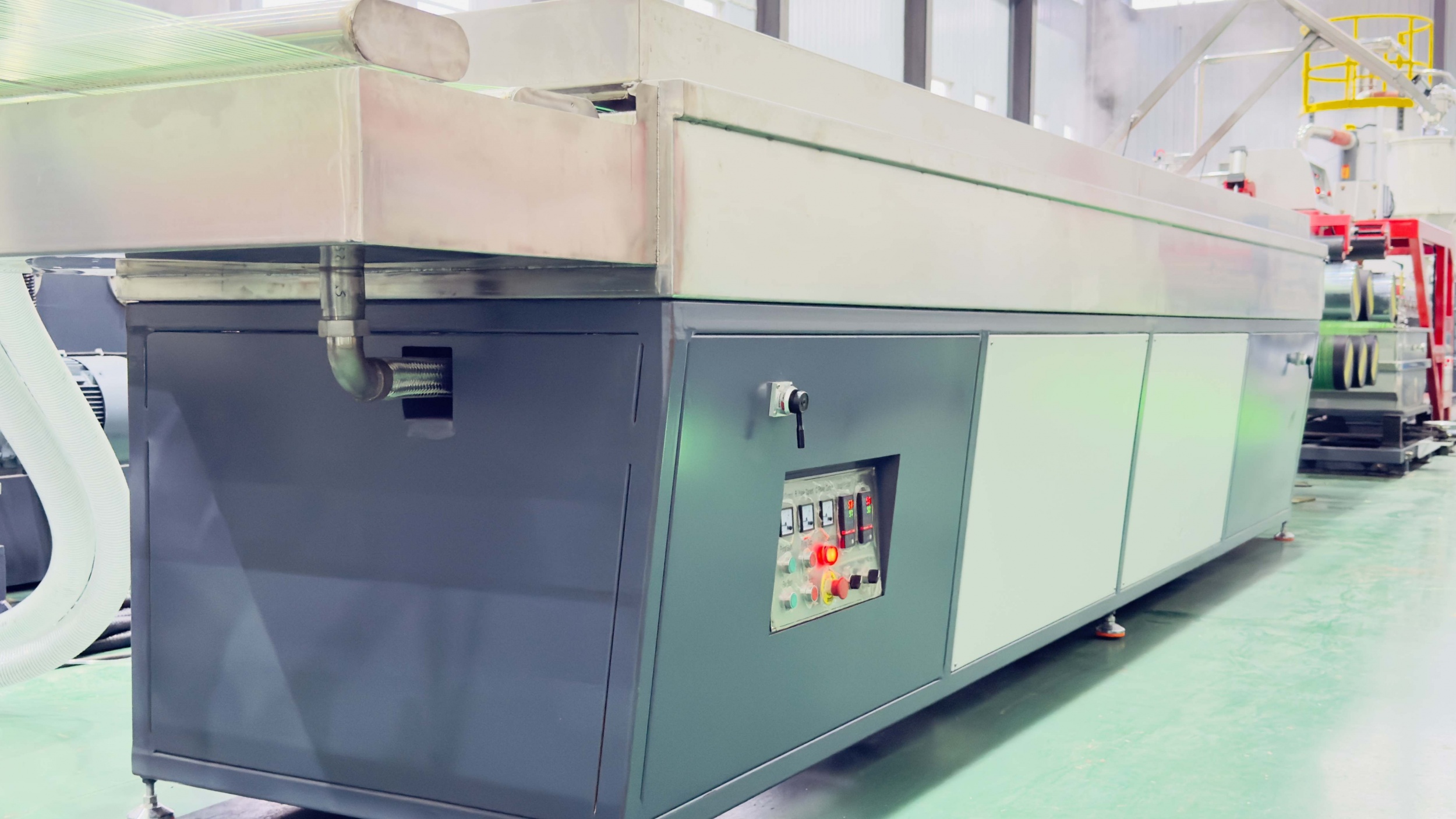

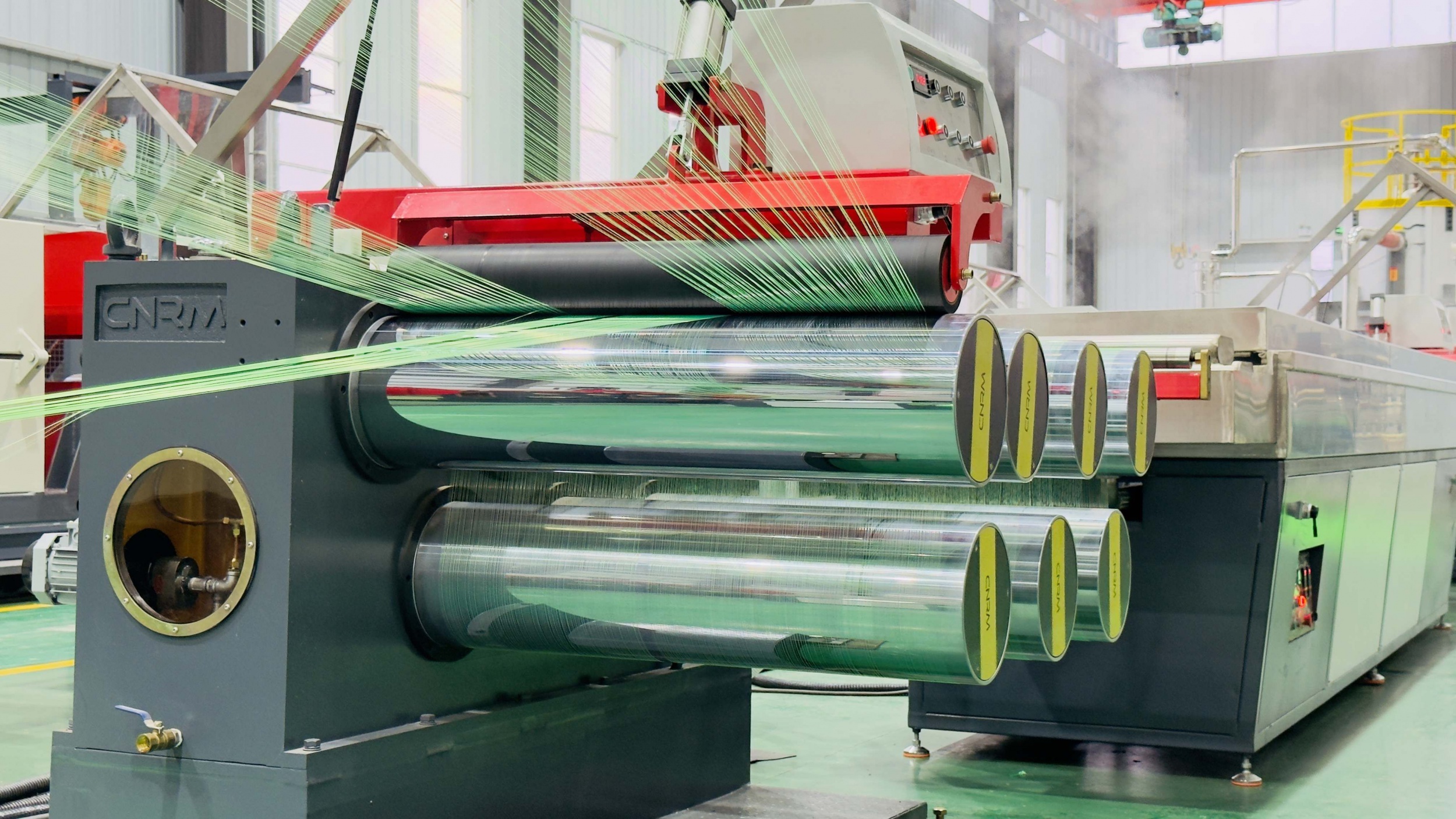

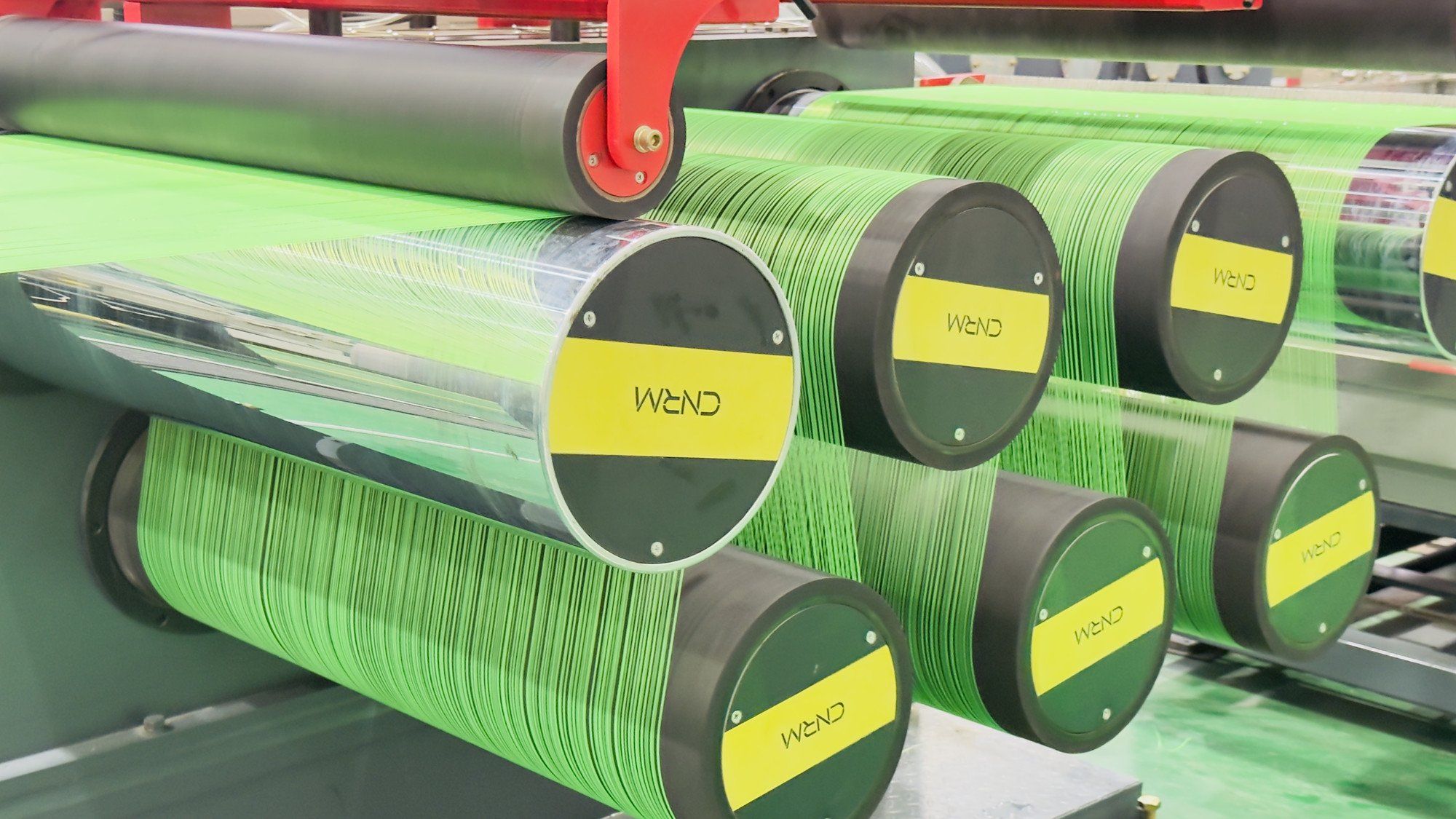

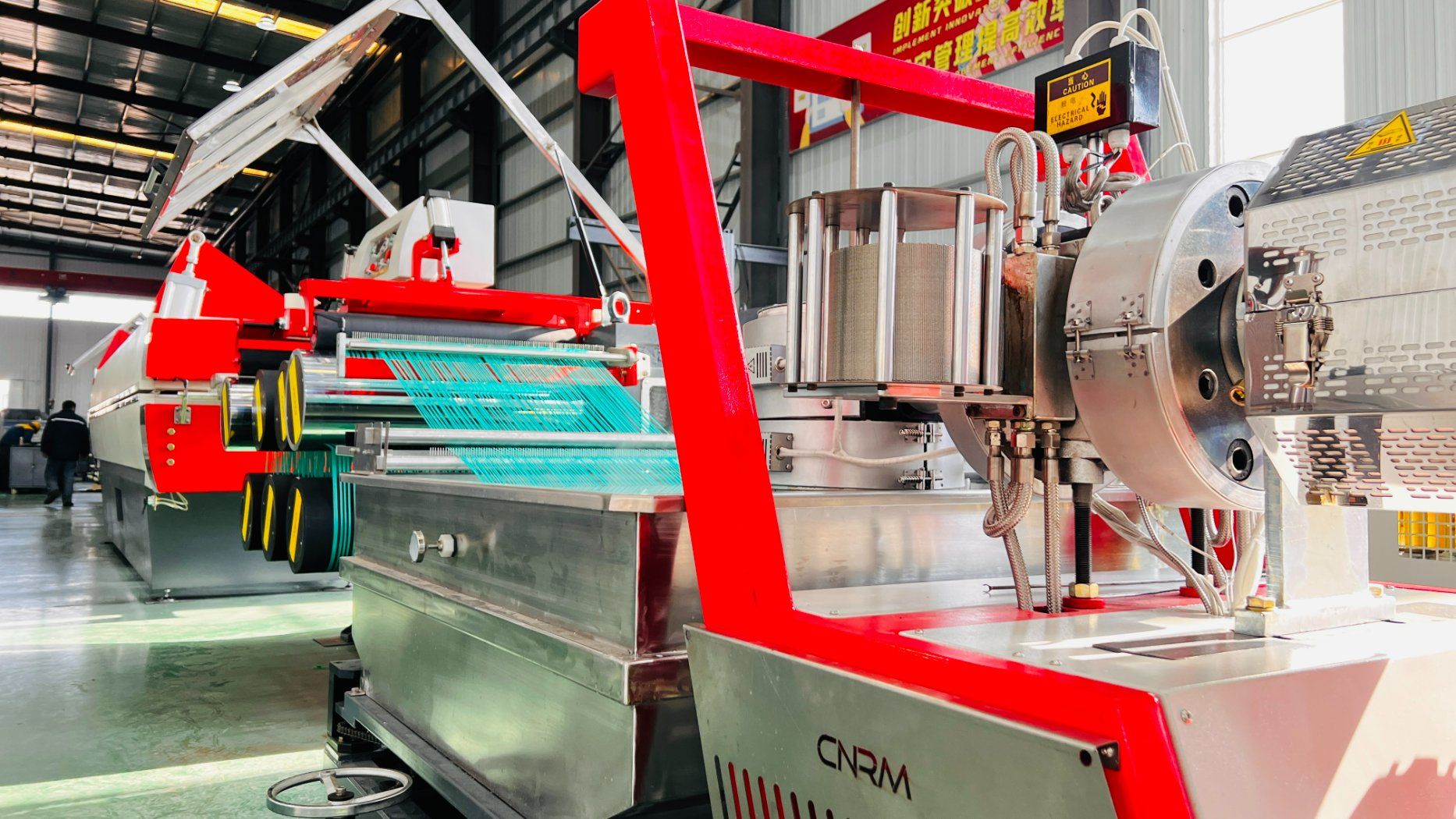

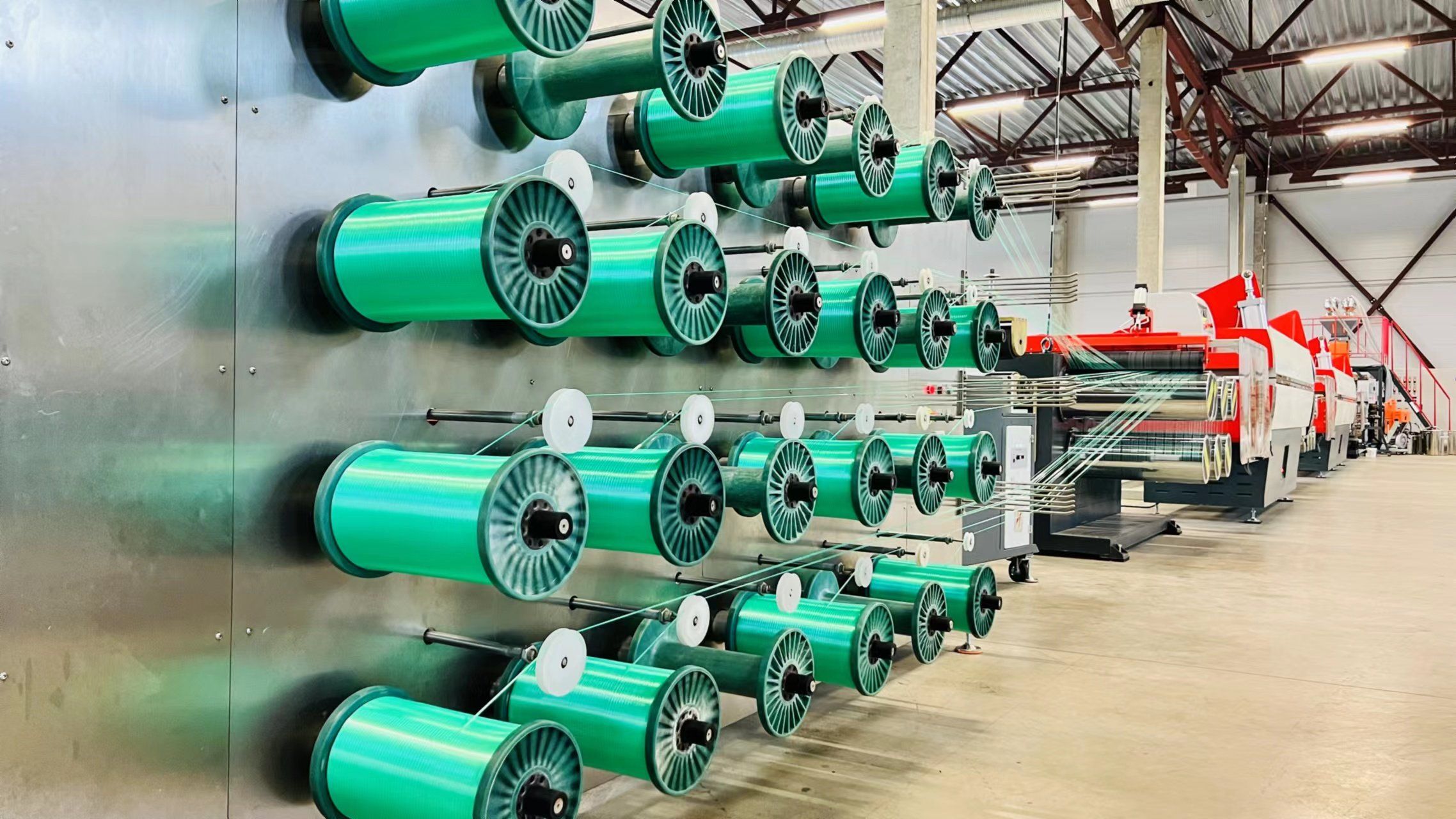

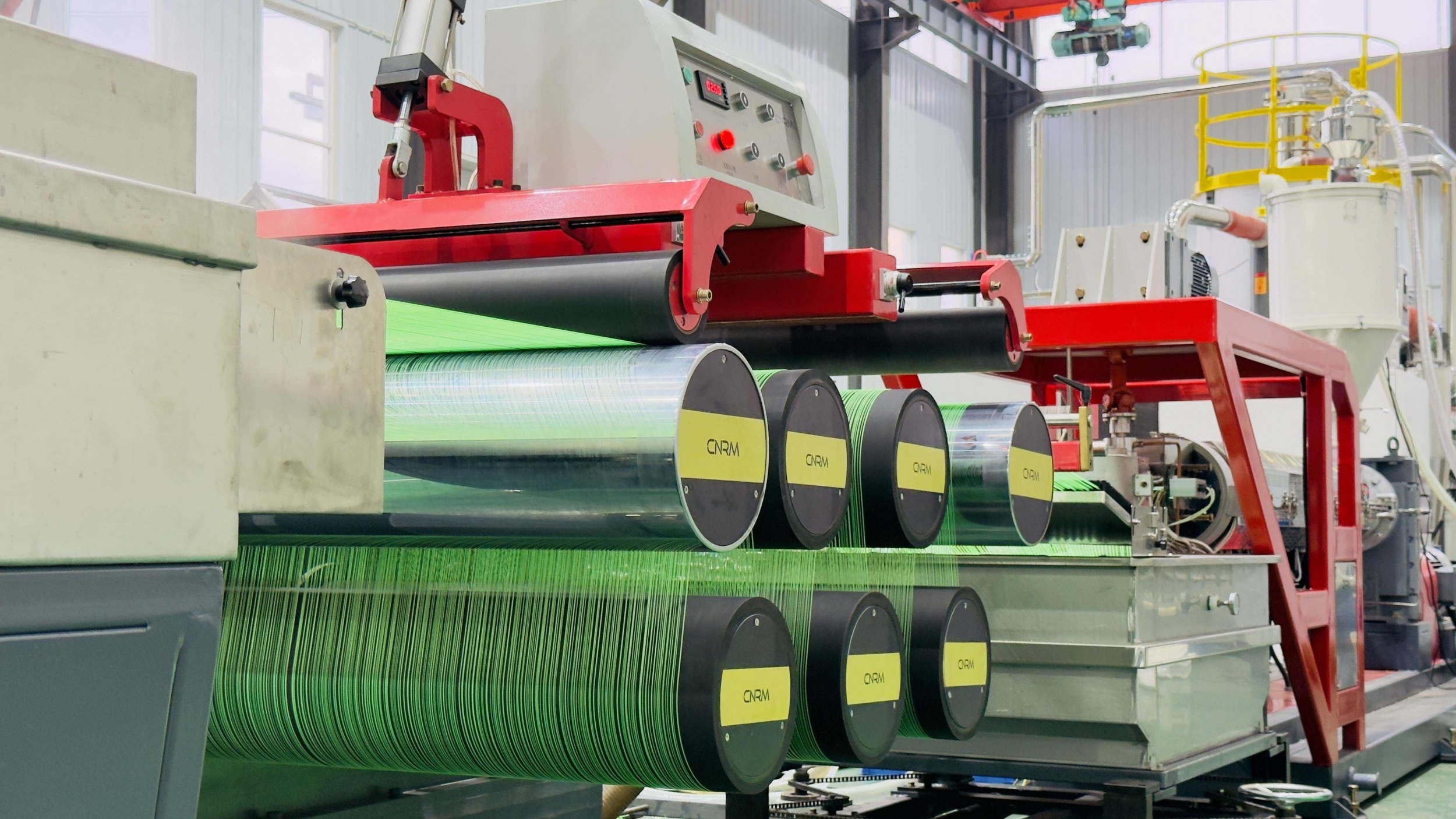

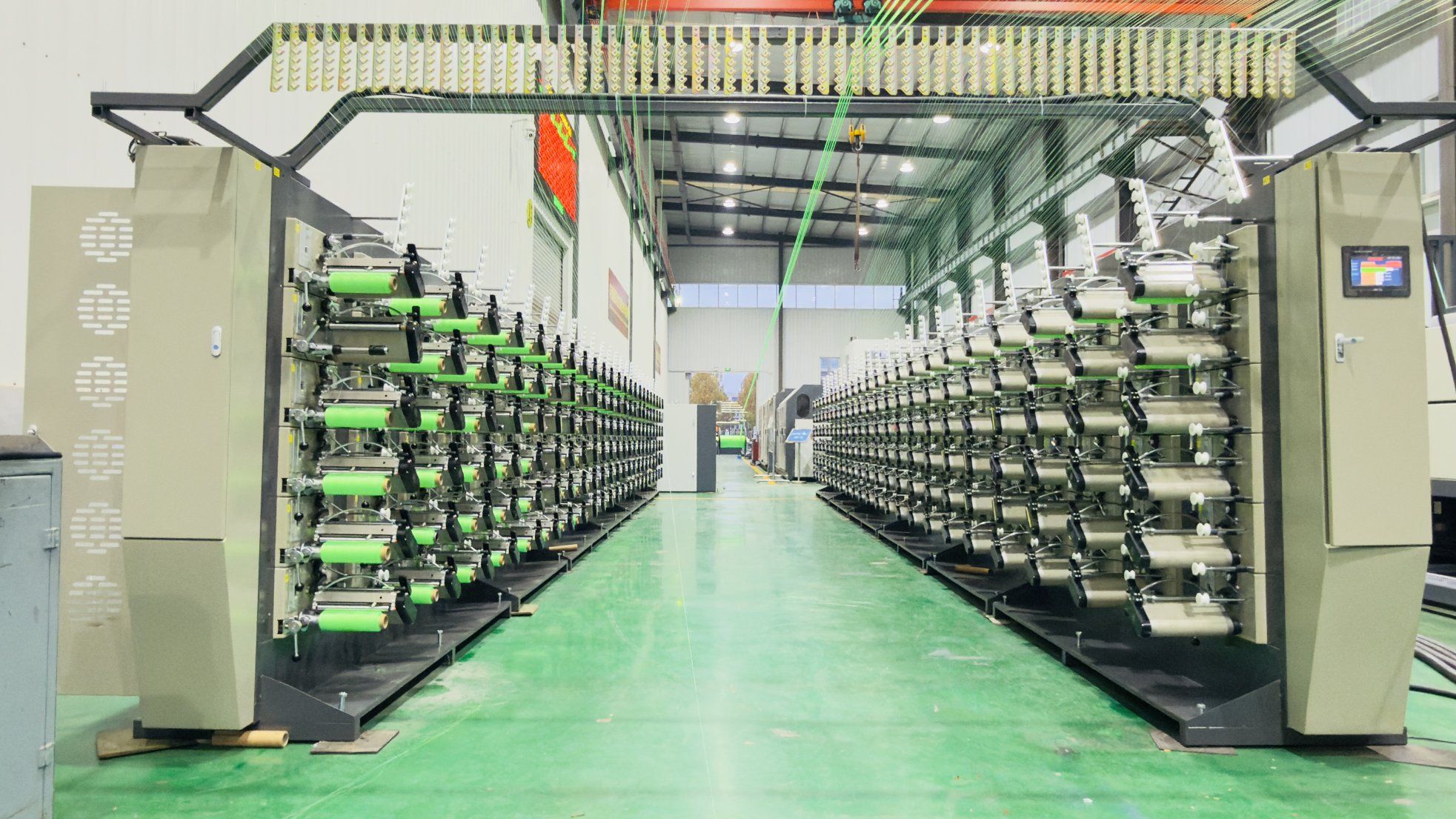

Detail Photos Of Plastic Extruders
If you need CNRM PP/PE/PET Filament Extrusion Line for Rope Netting Broom Brush Carpet price and video, Please contact us at any time!
