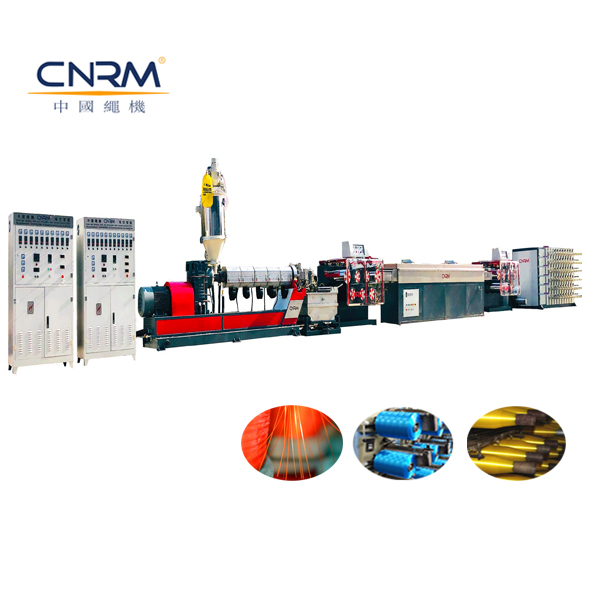

HDPE PP Monofilament Extrusion Line For Ultra High Tenacity Rope And Net
Brief Introduction
Our HDPE PP Monofilament Extrusion Line For Ultra High Tenacity Rope And Net is high-efficiency, energy-saving and easy to operate. It produces uniform, high-strength plastic monofilaments for fishing nets, ropes, brooms, brushes and agricultural nets. Stable running, precise diameter control, full technical support and customized solutions available. Competitive price, reliable quality, ideal for your plastic filament production business.
1. Raw material: PP(polypropylene), HDPE( polyethylene) ,PE, PET , nylon.
100% new or recycled mixed material
2. Yarn size: Diameter 0.13-0.5mm
3. Capacity: 1200-4000KG/24H
4. Application: Rope, Net, Mesh, Bag, Broom, Brush.
Technical data-CNRM HDPE PP Monofilament Extrusion Line
| Item | HDYSJ-70*33 | HDYSJ-80×33 | HDYSJ-90×33 |
| Screw diameter | 70mm | 80mm | 90mm |
| Fiber diameter | 0.13-0.35mm | 0.13-0.35mm | 0.13-0.35mm |
| Ratio of L/D | 33:1 | 33:1 | 33:1 |
| Rotation speed of screw | 20-90r/min | 20-90r/min | 20-90r/min |
| Drawing ratio | 4-10 | 4-10 | 4-10 |
| Heating Type | Hot Water Tank/Hot Oven | Hot Water Tank/Hot Oven | Hot Water Tank/Hot Oven |
| Power consumption | 100kw/30kw | 130kw/40kw | 150kw/50kw |
| Max output capacity | 1200kg/24h | 2000kg/24h | 3000kg/24h |
| Machine dimension(L×W×H) | 20×3×2.5m | 23×3×2.5m | 27×3×2.5m |
| Machine weight | 10 tons | 12 tons | 15 tons |
We can customize different types of extruders according to your requirements for product strength, output capacity and end applications.
Optional Equiment of CNRM HDPE PP Monofilament Extrusion Line
· HMI+PLC system
· Meter pump
· Auto screen changer
· Gravimetric dosing system
Application-CNRM HDPE PP Monofilament Extrusion Line
Detail Photos Of Plastic Extruders
If you need HDPE PP Monofilament Extrusion Line For Ultra High Tenacity Rope And Net price and video, Please contact us at any time!
