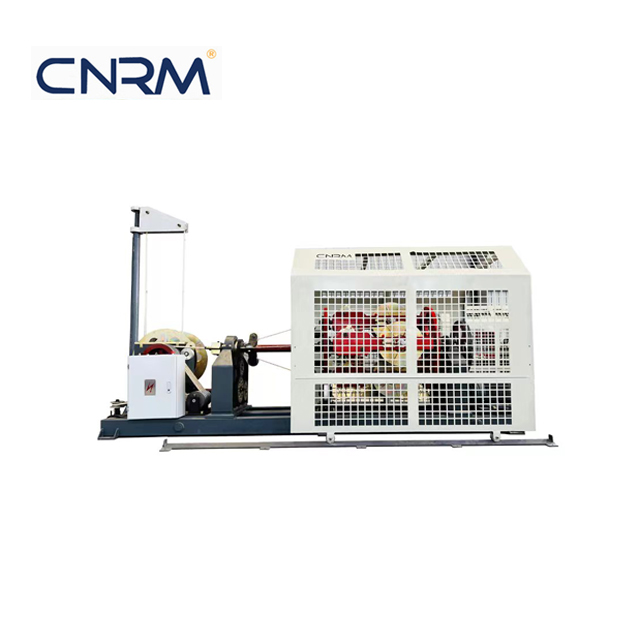

Mechanical Gear Rope Strander And Rope Twister Machine HDTM-D

Mechanical Gear Rope Strander And Rope Twister Machine HDTM-D is for production of large size rope from natural and synthetic fiber yarns.

Product Detail

Mechanical Gear Rope Strander And Rope Twister Machine HDTM-D

CNRM HDTM-D strander and rope-layer

For production of large size rope from natural and synthetic fiber yarns

Three-strand and four –strand models

Suitable material: PP, PE, sisal, jute fabric, etc.

With simple structure , easy to operate

Technical data-Geared Rope Making Machine

Model	Item	Size range	Lay range	Motor power	Outline dimension	Output
HDTM-D510	Strander	Φ2.5-5mm	14-28mm	1.5kw	2.4×0.5×0.65m	210-500m/h
HDTM-D510	Rope machine	Φ5-10mm	18-35mm	3kw	4.0×0.8×1.0m	300-600m/h
HDTM-D1030	Strander	Φ5-15mm	28-90mm	3kw	4.0×0.8×1.0m	470-1200m/h
HDTM-D1030	Rope machine	Φ10-30mm	36-85mm	5.5kw	6.5×1.7×1.7m	145-340m/h
HDTM-D2040	Strander	Φ10-20mm	55-110mm	5.5kw	3.2×1.2×1.1m	530-1056m/h
HDTM-D2040	Rope machine	Φ20-40mm	70-140mm	7.5kw	4.45×1.7×1.8m	70-140m/h
HDTM-D2460	Strander	Φ12-30mm	67-200mm	7.5kw	4.0×0.8×1.75m	300-860m/h
HDTM-D2460	Rope machine	Φ24-60mm	72-200mm	11kw	6.5×1.75×1.75m	250-700m/h
HDTM-D3272	Strander	Φ16-36mm	100-220mm	11kw	4.38×1.48×1.36m	580-1056m/h
HDTM-D3272	Rope machine	Φ32-72mm	130-280mm	15kw	7.18×2.58×1.68m	312-672m/h

If you need Mechanical Gear Rope Strander And Rope Twister Machine HDTM-D video and price, welcome your inquiry!
