Brief Introduction.

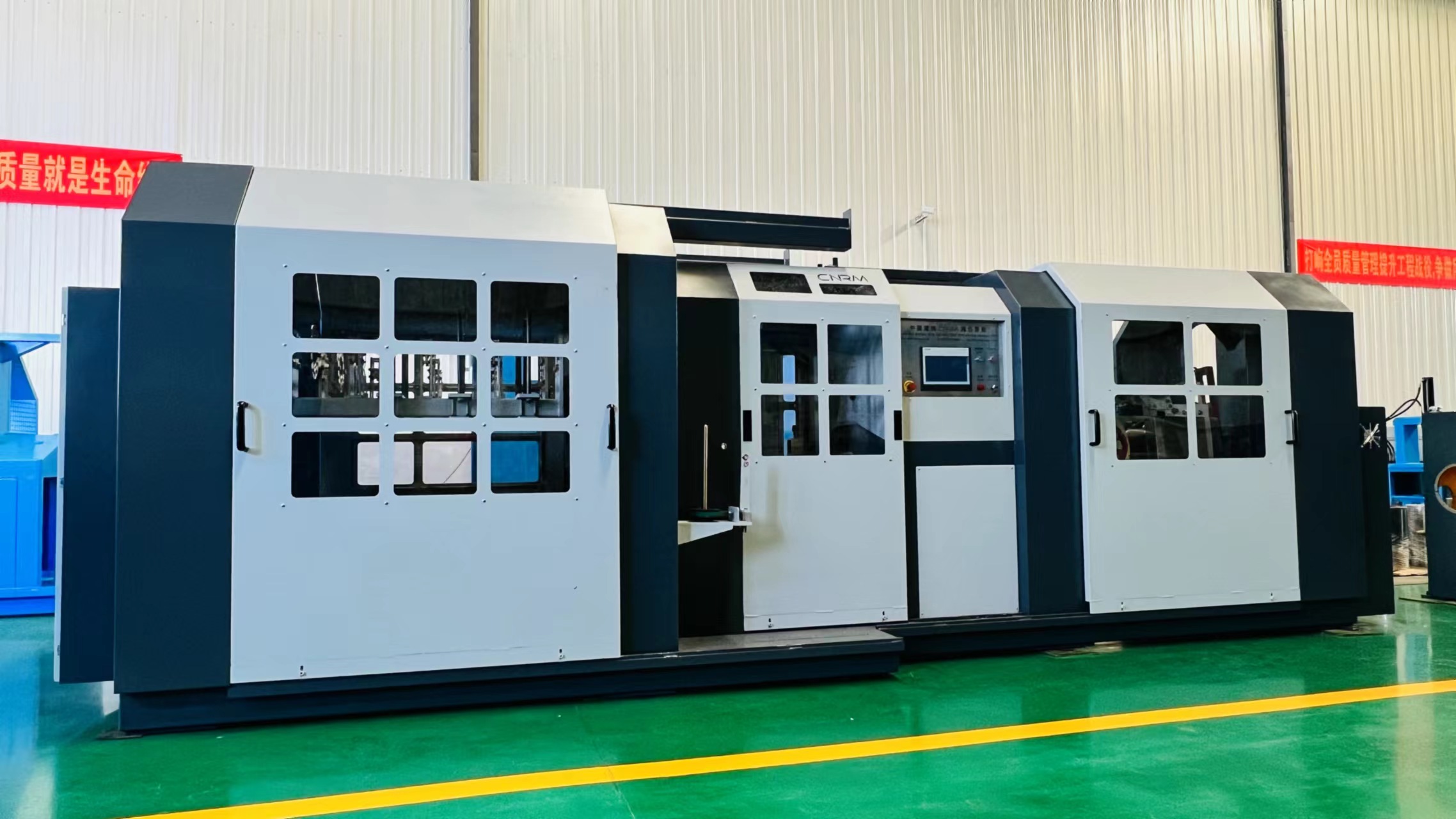

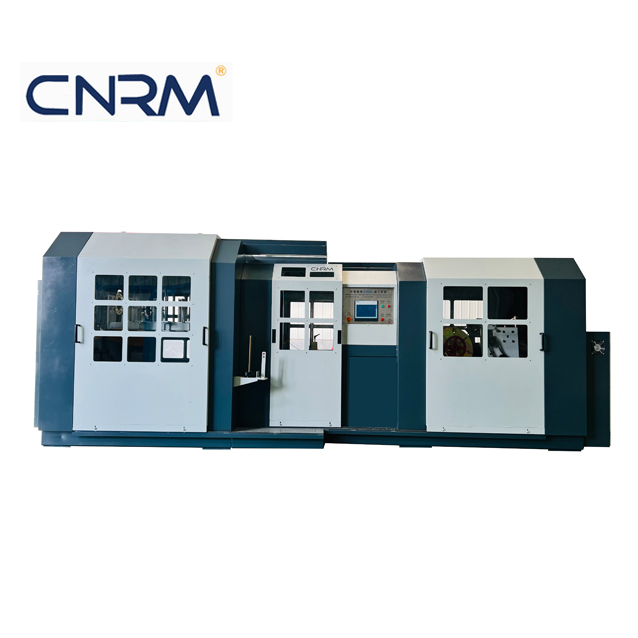

New Era HDTM-M33T Automatic Rope Making Machine adopts advanced technology and uses PLC to control the rope processing technology, thereby reducing the technical requirements of workers, facilitating operation, and reducing labor.
Technical data-Automatic Rope Making Machine 3-10mm
Rope range | Φ3-10mm | |
Lay range | 15-38mm | |
Rope lay | S or Z | |
Motor | Rope:4kw Strand:7.5kw Drawing:3.7kw | |
Take-up, coiling head | Φ480mm, traverse 265mm, barrel Φ138mm | |
Take-up, max. weight | Polypropylene 25kg | |
Machine weight | 4300kg | |
Machine dimension | 6450×2050×2200mm(L×W×H) | |
Pay-off packages | M33-3 | M33-4 |
3×8, max.Φ175×300mm traverse | 4×8,max.Φ175×300mm traverse | |
3×6, max.Φ225×300mm traverse | 4×6,max.Φ225×300mm traverse | |
Performance & advantages-Automatic Rope Machine
· Yarn-break detection system
· Set lay lengh electronically
· Synchronous belt
· HMI+PLC system
· Full-closed door
· Three-motor system for electronic change for rope and strand technology factor

If you need New Era 3-10mm Automatic Rope Making Machine, welcome your inquiry!
