Brief Introduction
New Era PP Raffia Rope Twine Making Machine China is designed based on European technology and considering the actual situation of the rope twine plastic industry. Simple structure, convenient maintenance, stable operation.
Suitable for polypropylene (PP raffia rope making machine) and polyethylene (PE) material. This machine is mainly for yarn making of rope twine from PP PE granule.
·Yarn Type: Fibrillated yarn, Split Film.
·This raffia twine making machine is designed for the manufacturing of fibrillated tape, baler rope and twine,etc.
Technical Data-PP Raffia Rope Twine Making Machine
Item | HDSLJ-70×33 | HDSLJ-80×33 | HDSLJ-90×33 | HDSLJ-100×33 |
T-die width | 600mm | 900mm | 1000mm | 1200mm |
Screw diameter | 70mm | 80mm | 90mm | 90mm |
Fiber type | PP/PE/HDPE Tape, Raffia Twine | |||
Ratio of L/D | 33:1 | 33:1 | 33:1 | 33:1 |
Rotation speed of screw | 20-90r/min | 20-90r/min | 20-90r/min | 20-90r/min |
Drawing ratio | 4-10 | 4-10 | 4-10 | 4-10 |
Cooling mode | Water cooling | Water cooling | Water cooling | Water cooling |
Power consumption | 100kw/30kw | 130kw/40kw | 150kw/50kw | 220kw/60kw |
Max output capacity | 1200kg/24h | 2000kg/24h | 3000kg/24h | 4000kg/24h |
Machine weight | 10tons | 12 tons | 15 tons | 18 tons |
Machine dimension(L×W×H) | 25×2×2m | 26×2.2×2m | 27×2.2×2m | 28×2.2×2m |
Optional Equiment of Raffia Twine Machine:
· HMI+PLC system
· Meter pump
·Auto screen changer
·Gravimetric dosing system
·Edge yarn crush system

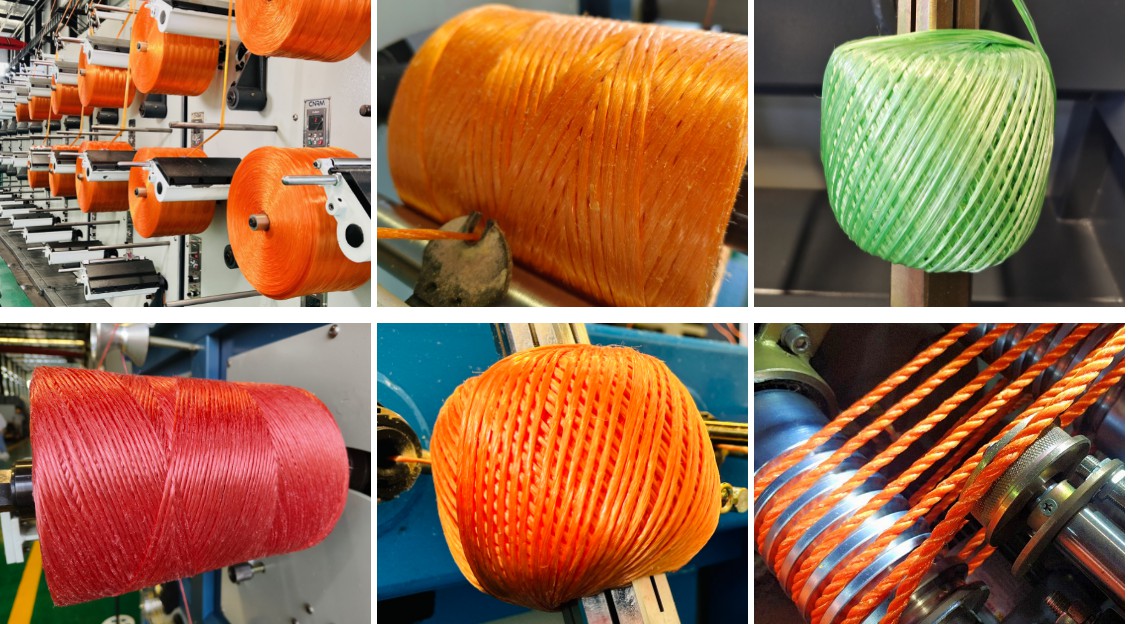

Application of Raffia Rope Twine Machine

If you need New Era PP Raffia Rope Twine Making Machine China price and video, Welcome to inquire!
