Brief Introduction

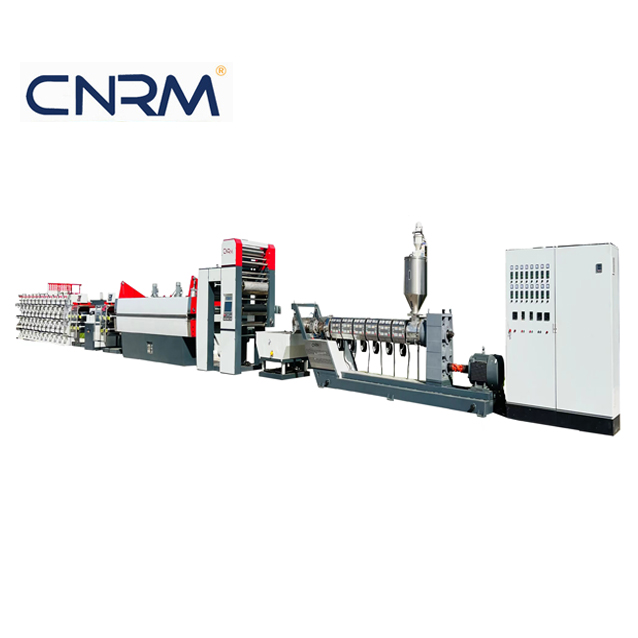

PP Polypropylene Raffia Yarn Making Machine High Strength is designed based on European technology and considering the actual situation of the rope twine plastic industry. Simple structure, convenient maintenance, stable operation.
Suitable for polypropylene (PP raffia yarn making machine) and polyethylene (PE) material. This machine is mainly for yarn making of rope twine from PP PE granule.

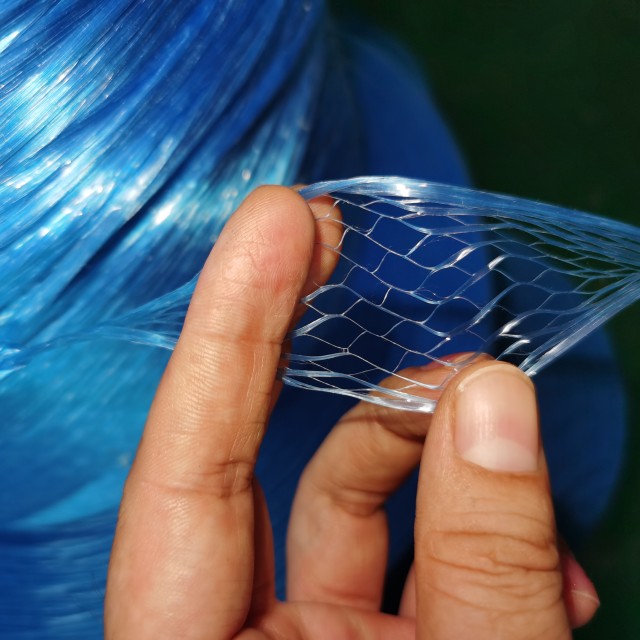

·Yarn Type: Fibrillated yarn, Split Film.
·This raffia yarn making machine is designed for the manufacturing of fibrillated tape, baler rope and twine,etc.
Technical Data-PP Raffia Yarn Making Machine
Item | HDSLJ-70×33 | HDSLJ-80×33 | HDSLJ-90×33 | HDSLJ-100×33 |
T-die width | 600mm | 900mm | 1000mm | 1200mm |
Screw diameter | 70mm | 80mm | 90mm | 90mm |
Fiber type | PP/PE/HDPE Tape, Raffia Twine | |||
Ratio of L/D | 33:1 | 33:1 | 33:1 | 33:1 |
Rotation speed of screw | 20-90r/min | 20-90r/min | 20-90r/min | 20-90r/min |
Drawing ratio | 4-10 | 4-10 | 4-10 | 4-10 |
Cooling mode | Water cooling | Water cooling | Water cooling | Water cooling |
Power consumption | 100kw/30kw | 130kw/40kw | 150kw/50kw | 220kw/60kw |
Max output capacity | 1200kg/24h | 2000kg/24h | 3000kg/24h | 4000kg/24h |
Machine weight | 10tons | 12 tons | 15 tons | 18 tons |
Machine dimension(L×W×H) | 25×2×2m | 26×2.2×2m | 27×2.2×2m | 28×2.2×2m |
Optional Equiment of Raffia Yarn Making Machine:
· HMI+PLC system
· Meter pump
·Auto screen changer
·Gravimetric dosing system
·Edge yarn crush system


Application of Raffia Yarn Machine
