12-20mm High Speed Automatic Rope Making Machine

Graphic
Detail

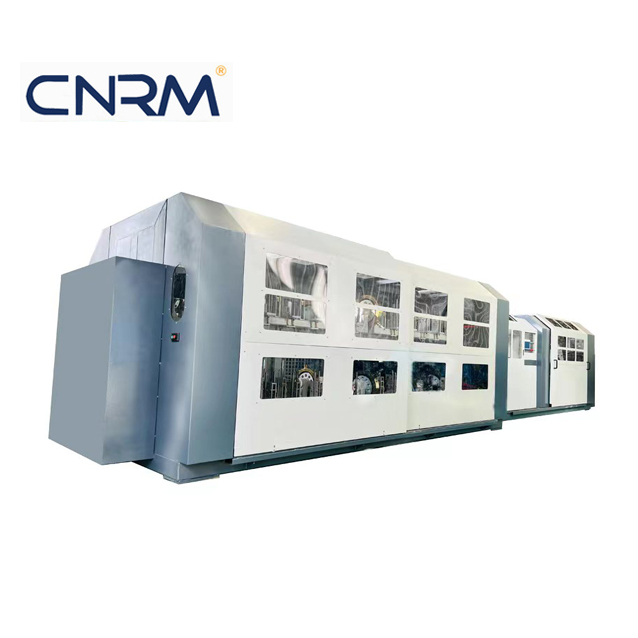

12-20mm High Speed Automatic Rope Making Machine

12-20mm High Speed Automatic Rope Making Machine adopts advanced technology and uses PLC to control the rope processing technology, thereby reducing the technical requirements of workers, facilitating operation, and reducing labor.

Product Detail

12-20mm High Speed Automatic Rope Making Machine

Brief Introduction.

12-20mm High Speed Automatic Rope Making Machine adopts advanced technology and uses PLC to control the rope processing technology, thereby reducing the technical requirements of workers, facilitating operation, and reducing labor.

Technical data-Automatic Rope Making Machine 12-20mm

Rope range	Φ12-20mm
Lay range	32-78mm
Rope lay	S or Z
Motor	Rope:11kw Strand:5.5kw Drawing:7.5kw
Take-up, coiling head	Φ650mm, traverse 400mm,barrel Φ148mm
Take-up, max. weight	Polypropylene 60kg
Machine weight	9600kg
Machine dimension	11000x2220x2350mm(L×W×H)
Pay-off packages	M55-3	M55-4
	3x30, max.Φ175×300mm traverse	4×30,max.Φ175×300mm traverse
	3x24, max.Φ225×300mm traverse	4×24,max.Φ225×300mm traverse

Performance & advantages-Automatic Rope Machine

· Yarn-break detection system

· Set lay lengh electronically

· Synchronous belt

· HMI+PLC system

· Full-closed door

· Three-motor system for electronic change for rope and strand technology factor

If you need 12-20mm High Speed Automatic Rope Making Machine, welcome your inquiry!
