18-26mm CNC Automatic Rope Making Machine

Graphic
Detail

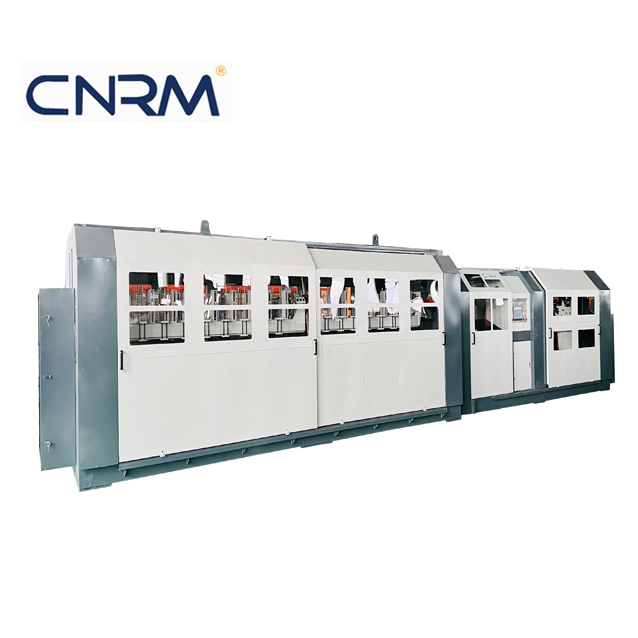

18-26mm CNC Automatic Rope Making Machine

18-26mm CNC Automatic Rope Making Machine adopts advanced technology and uses PLC to control the rope processing technology, thereby reducing the technical requirements of workers, facilitating operation, and reducing labor.

Product Detail

18-26mm CNC Automatic Rope Making Machine

Brief Introduction.

18-26mm CNC Automatic Rope Making Machine adopts advanced technology and uses PLC to control the rope processing technology, thereby reducing the technical requirements of workers, facilitating operation, and reducing labor.

Technical data-Automatic Rope Making Machine 18-26mm

Rope range	Φ18-26mm
Lay range	40-105mm
Rope lay	S or Z
Motor	Rope:15kw Strand:5.5kw Drawing:7.5kw
Take-up, coiling head	Φ740mm, traverse 430mm,barrel Φ150mm
Take-up, max. weight	Polypropylene 70kg
Machine weight	14000kg
Machine dimension	12250x2220x2450mm(L×W×H)
Pay-off packages	M66-3	M66-4
	3x38 , max.Φ175×300mm traverse	4×38,max.Φ175×300mm traverse
	3x30 , max.Φ225×300mm traverse	4×30,max.Φ225×300mm traverse

Performance & advantages-Automatic Rope Machine

· Yarn-break detection system

· Set lay lengh electronically

· Synchronous belt

· HMI+PLC system

· Full-closed door

· Three-motor system for electronic change for rope and strand technology factor

If you need 18-26mm CNC Automatic Rope Making Machine, welcome your inquiry!
