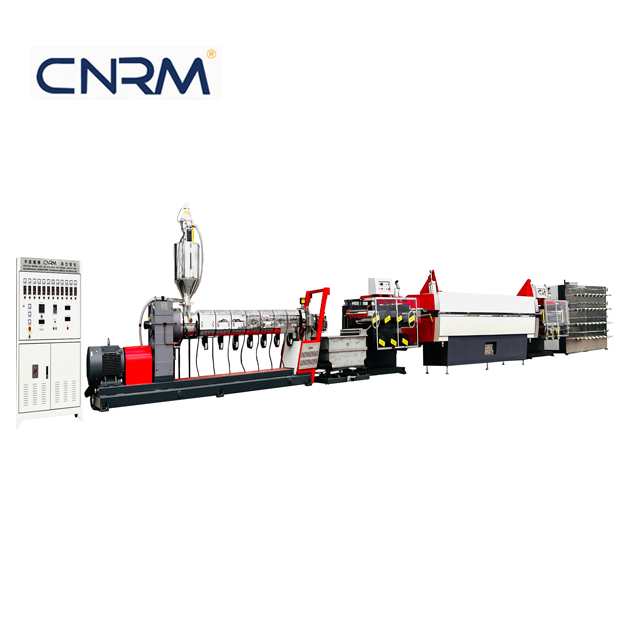

CNRM Anti-Crack PP Concrete Reinforced Fiber Extruder
Brief Introduction
This concrete reinforcement fiber extruder is the core main equipment for PP/PE concrete anti-crack fiber production line. It adopts semi-automatic design, simple structure, manual auxiliary operation, stable plasticizing and even extrusion, easy to operate and long service life.
Applicable Raw Materials
Item | HDBSJ-80×33 | HDBSJ-90×33 | HDBSJ-100×33 |
Screw diameter | 80mm | 90mm | 100mm |
Fiber diameter | 1000D-3500D | 1000D-3500D | 1000D-3500D |
Fiber type | PP danline Yarn For Making Rope or Net |
Spinning holes | 64 | 96 | 128 |
Ratio of L/D | 33:1 | 33:1 | 33:1 |
Rotation speed of screw | 20-90r/min | 20-90r/min | 20-90r/min |
Drawing ratio | 8-15 | 8-15 | 8-15 |
Cooling mode | Water cooling | Water cooling | Water cooling |
Hot oven | 6000*600*200mm | 6000*850*200mm | 6000*1050*200mm |
Power consumption | 150kw/50kw | 160kw/50kw | 200kw/70kw |
Max output capacity | 2500kg/24h | 3500kg/24h | 4500kg/24h |
Machine weight | 12tons | 14tons | 16tons |
Machine dimension(L×W×H) | 23×3×2.5m | 25×3×2.5m | 27×3×2.5m |
Key Advantages
- Semi-automatic control, simple operation, easy for workers to master
- Optimized screw and barrel, good plasticizing effect, stable discharging
- Low power consumption, low failure rate, convenient daily maintenance
- Compact structure, small floor space, cost-effective investment
- High-strength extruded yarn, perfect for next stretching and cutting process
Application Scope
Widely used in building materials factories, concrete reinforcement fiber processing plants, plastic fiber production enterprises, supporting full set of fiber making line.
