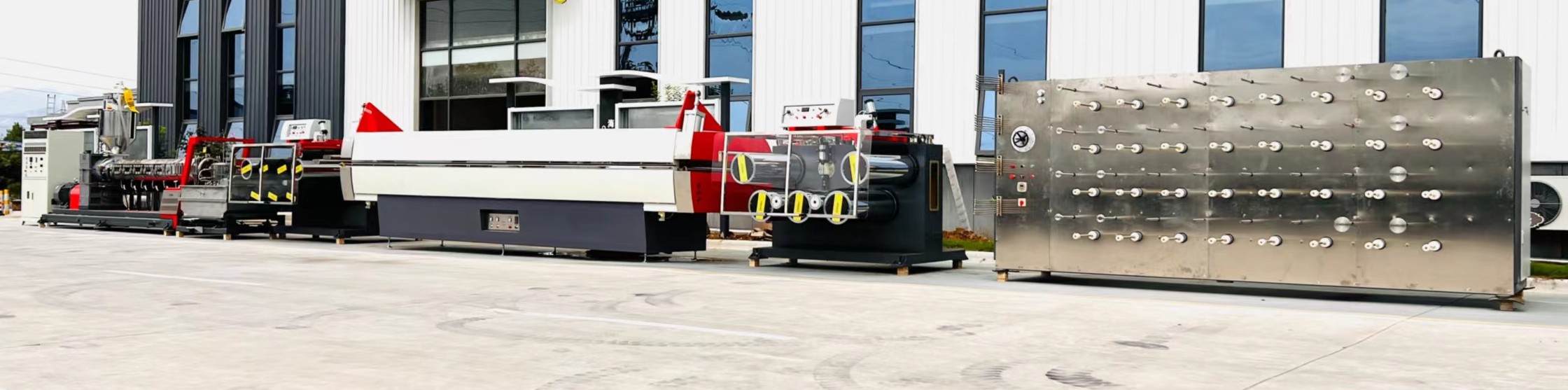

CNRM Semi-Automatic PP Concrete Macro Fiber Extrusion Machine Line
Brief Introduction

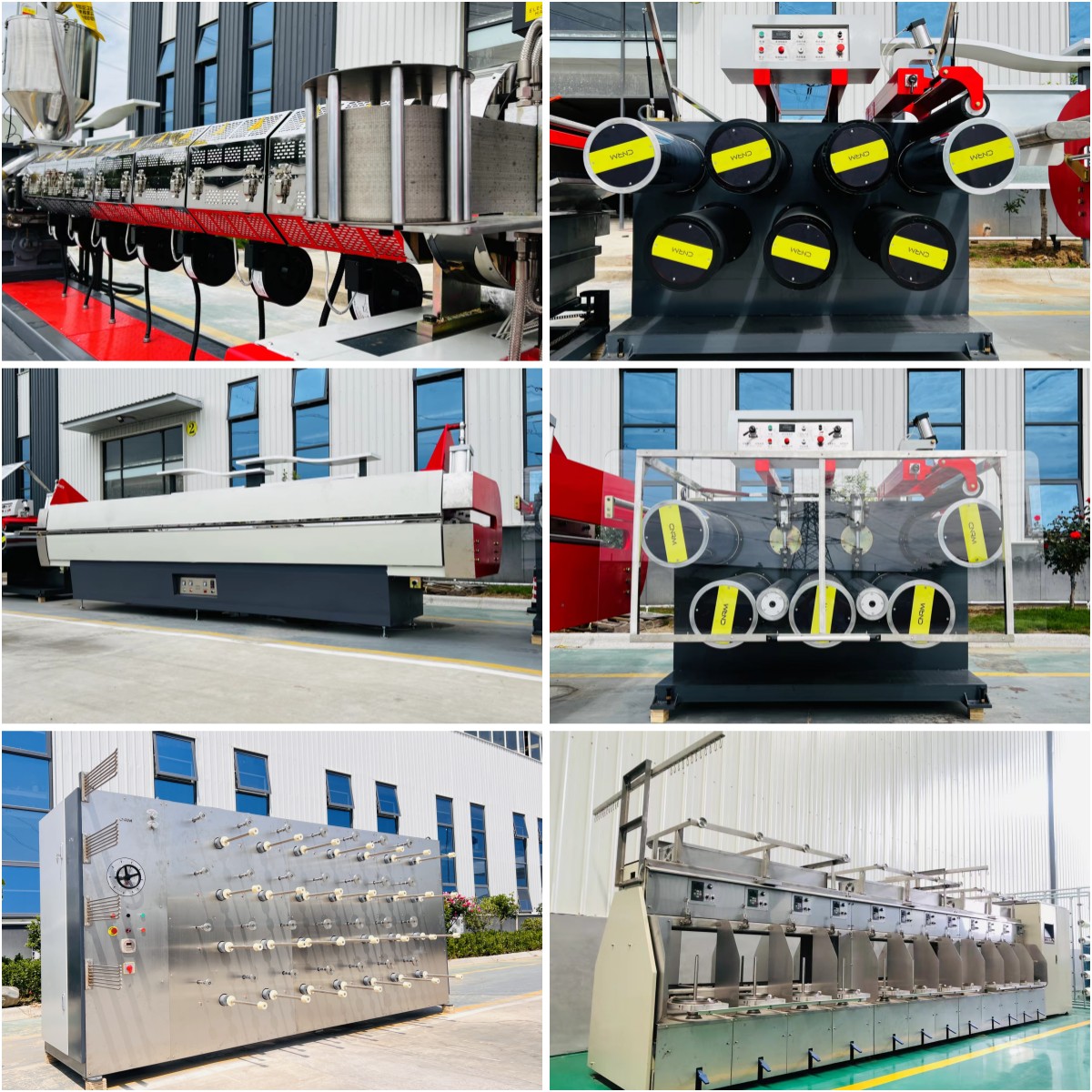

This PP Concrete Macro Fiber Extrusion Machine Line is the core main equipment for PP/PE for manufacturing concrete macro reinforcement fiber. It adopts semi-automatic design, simple structure, manual auxiliary operation, stable plasticizing and even extrusion, easy to operate and long service life.
Applicable Raw Materials
- Recycled plastic particles
Item | HDBSJ-80×33 | HDBSJ-90×33 | HDBSJ-100×33 |
Screw diameter | 80mm | 90mm | 100mm |
Fiber diameter | 1000D-3500D | 1000D-3500D | 1000D-3500D |
Fiber type | PP danline Yarn For Making Rope or Net |
Spinning holes | 64 | 96 | 128 |
Ratio of L/D | 33:1 | 33:1 | 33:1 |
Rotation speed of screw | 20-90r/min | 20-90r/min | 20-90r/min |
Drawing ratio | 8-15 | 8-15 | 8-15 |
Cooling mode | Water cooling | Water cooling | Water cooling |
Hot oven | 6000*600*200mm | 6000*850*200mm | 6000*1050*200mm |
Power consumption | 150kw/50kw | 160kw/50kw | 200kw/70kw |
Max output capacity | 2500kg/24h | 3500kg/24h | 4500kg/24h |
Machine weight | 12tons | 14tons | 16tons |
Machine dimension(L×W×H) | 23×3×2.5m | 25×3×2.5m | 27×3×2.5m |
Key Advantages-PP Concrete Macro Fiber Extrusion Line
- Semi-automatic control, simple operation, easy for workers to master
- Optimized screw and barrel, good plasticizing effect, stable discharging
- Low power consumption, low failure rate, convenient daily maintenance
- Compact structure, small floor space, cost-effective investment

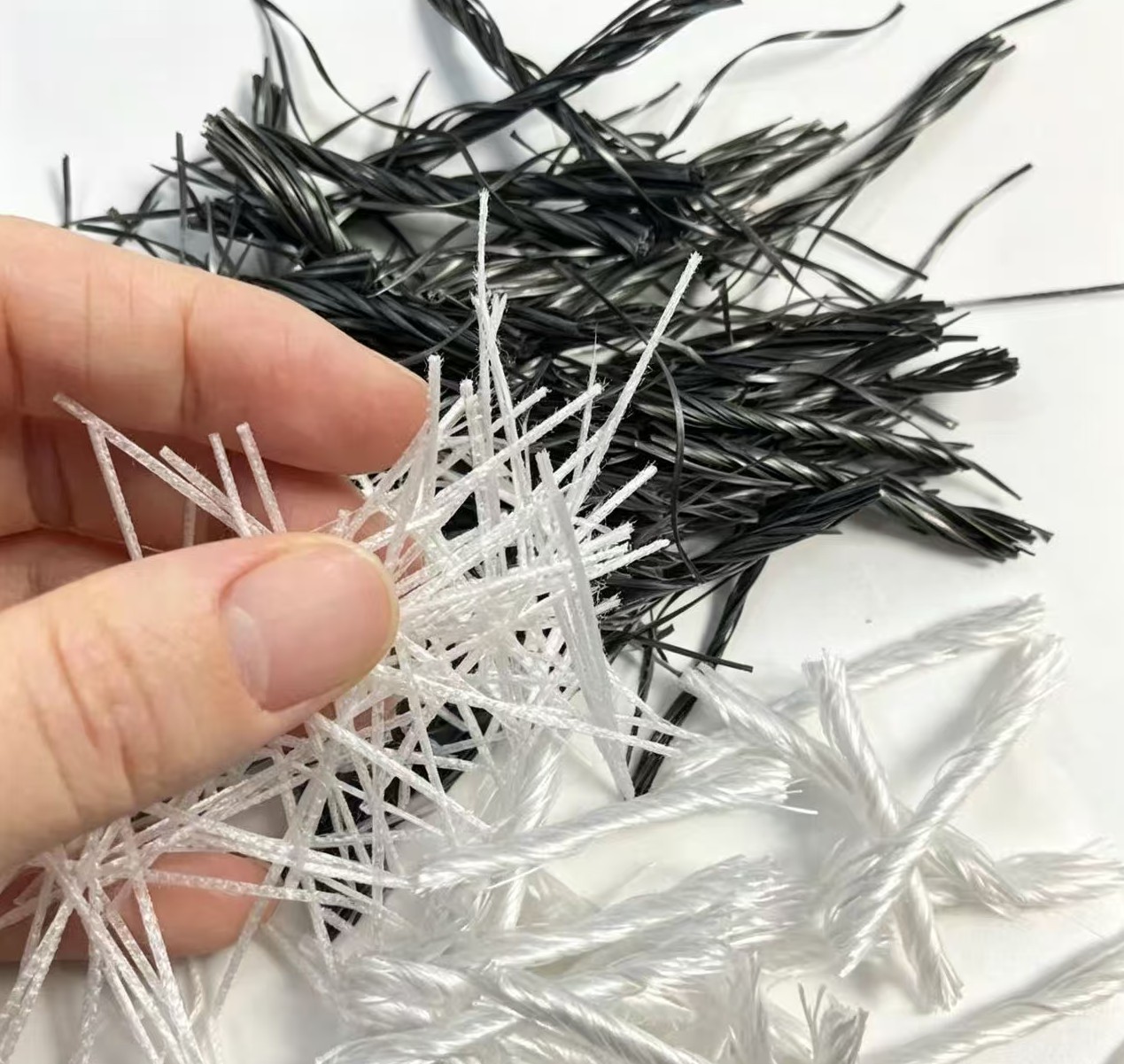

- Produced PP concrete macro fiber with high tensile strength and stable size
- High-strength extruded yarn, perfect for next stretching and cutting process
Application Scope
Widely used in building materials factories, concrete reinforcement fiber processing plants, plastic fiber production enterprises, supporting full set of fiber making line.
