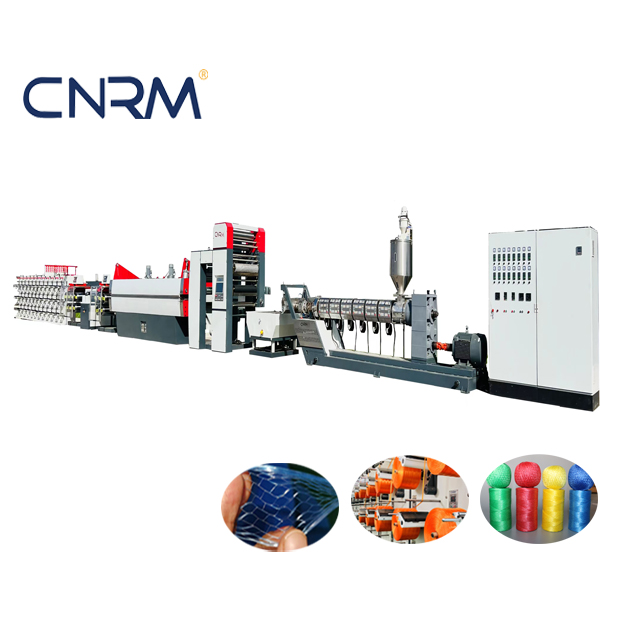

CNRM Heavy Duty PP Polypropylene Cable Filler Yarn Making Machine With 50kgs Winder
Introduction-CNRM Heavy Duty PP Polypropylene Cable Filler Yarn Making Machine With 50kgs Winder
CNRM PP HDPE Extrusion line for fibrillated tape is designed based on European technology and considering the actual situation of the baler twine, cable filler yarn industry. Simple structure, convenient maintenance, stable operation.
Suitable for polypropylene and polyethylene (PE) material,Calcium carbonate, recycled material.
·Yarn Type: Fibrillated yarn, Split Film.
Technical Data-CNRM Heavy Duty PP Polypropylene Cable Filler Yarn Making Machine
Item | HDSLJ-70×33 | HDSLJ-80×33 | HDSLJ-90×33 | HDSLJ-100×33 |
T-die width | 600mm | 900mm | 1000mm | 1200mm |
Screw diameter | 70mm | 80mm | 90mm | 90mm |
Fiber type | PP/PE/HDPE Tape, Raffia Twine |
Ratio of L/D | 33:1 | 33:1 | 33:1 | 33:1 |
Rotation speed of screw | 20-90r/min | 20-90r/min | 20-90r/min | 20-90r/min |
Drawing ratio | 4-10 | 4-10 | 4-10 | 4-10 |
Cooling mode | Water cooling | Water cooling | Water cooling | Water cooling |
Power consumption | 100kw/30kw | 130kw/40kw | 150kw/50kw | 220kw/60kw |
Max output capacity | 1200kg/24h | 2000kg/24h | 3000kg/24h | 4000kg/24h |
Machine weight | 10tons | 12 tons | 15 tons | 18 tons |
Machine dimension(L×W×H) | 25×2×2m | 26×2.2×2m | 27×2.2×2m | 28×2.2×2m |
Optional Equiment of PP Polypropylene Cable Filler Yarn Making Machine
· HMI+PLC system
· Meter pump
·Auto screen changer
·Gravimetric dosing system
·Edge yarn crush system
If you need CNRM Heavy Duty PP Polypropylene Cable Filler Yarn Making Machine With 50kgs Winder, welcome to contact us!
