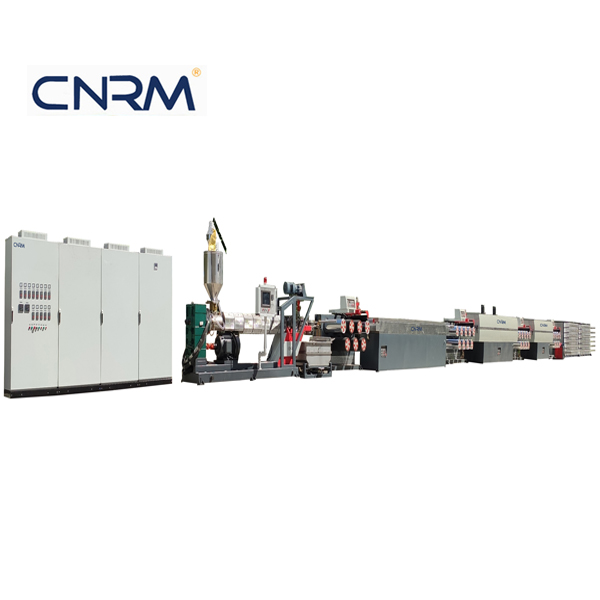

Polypropylene Polyethylene PP PET Tape Mono Extrusion Line For Artificial Grass/Carpet/Mesh Leno Bag
Brief Introduction
Our Polypropylene Polyethylene PP PET Tape Mono Extrusion Line For Artificial Grass/Carpet/Mesh Leno Bag is high-efficiency, energy-saving and easy to operate. It produces uniform, high-strength plastic monofilaments for fishing nets, ropes, brooms, brushes and agricultural nets. Stable running, precise diameter control, full technical support and customized solutions available. Competitive price, reliable quality, ideal for your plastic filament production business.
1. Raw material: pp pe, pet virgin granules or suitably treated recycled and washed bottle flakes,
100% new or recycled mixed material
2. Yarn size: 400D-1000D
3. Capacity: 1200-6000KG/24H
4. Application: Rope, Net, Mesh, Bag, Broom, Brush.
Technical Data-Polypropylene Polyethylene PP PET Tape Mono Extrusion Line
| Item | HDYSJ-70*33 | HDYSJ-80×33 | HDYSJ-90×33 |
| Screw diameter | 70mm | 80mm | 90mm |
| Fiber diameter | 0.13-0.35mm | 0.13-0.35mm | 0.13-0.35mm |
| Ratio of L/D | 33:1 | 33:1 | 33:1 |
| Rotation speed of screw | 20-90r/min | 20-90r/min | 20-90r/min |
| Drawing ratio | 4-10 | 4-10 | 4-10 |
| Heating Type | Hot Water Tank/Hot Oven | Hot Water Tank/Hot Oven | Hot Water Tank/Hot Oven |
| Power consumption | 100kw/30kw | 130kw/40kw | 150kw/50kw |
| Max output capacity | 1200kg/24h | 2000kg/24h | 3000kg/24h |
| Machine dimension(L×W×H) | 20×3×2.5m | 23×3×2.5m | 27×3×2.5m |
| Machine weight | 10 tons | 12 tons | 15 tons |
Customization is available based on size, application, strength, etc.
Optional Equiment of Polypropylene Polyethylene PP PET Tape Mono Extrusion Line
· HMI+PLC system
· Meter pump
·Auto screen changer
·Gravimetric dosing system

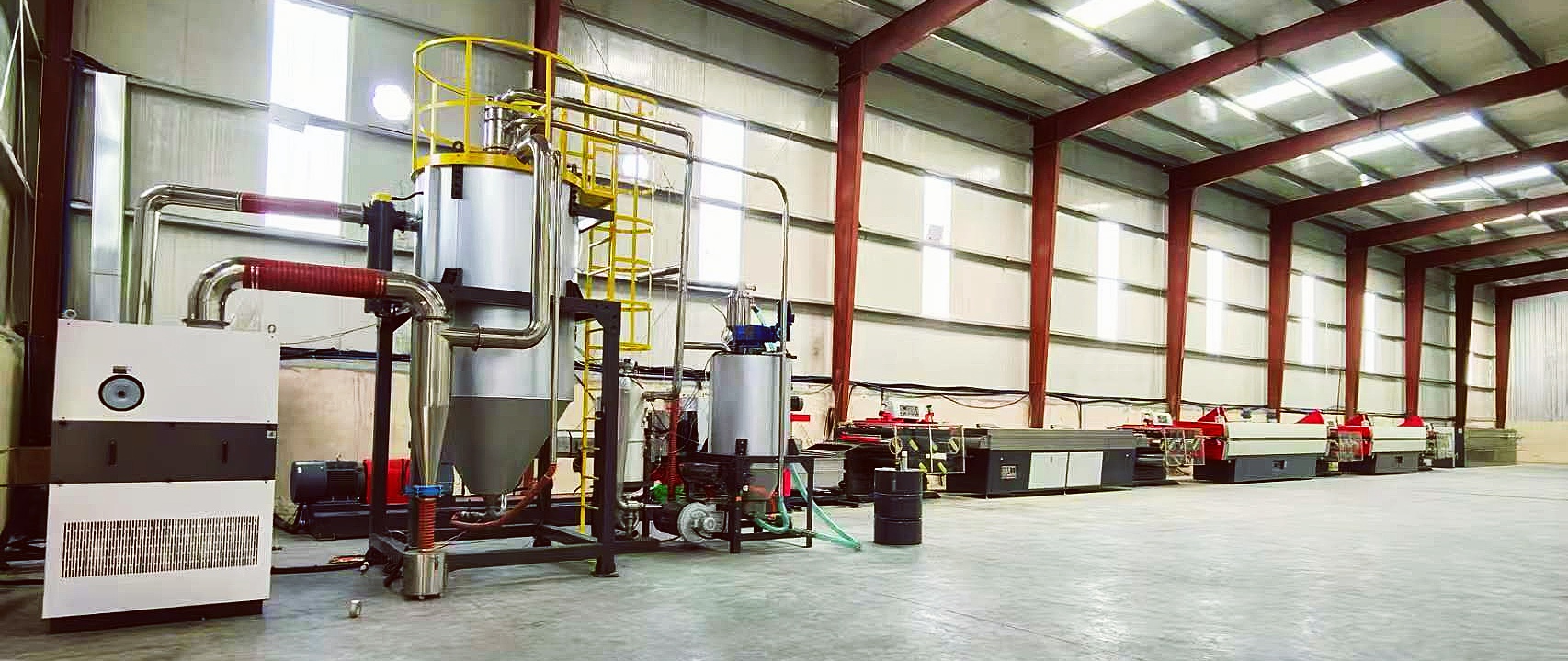

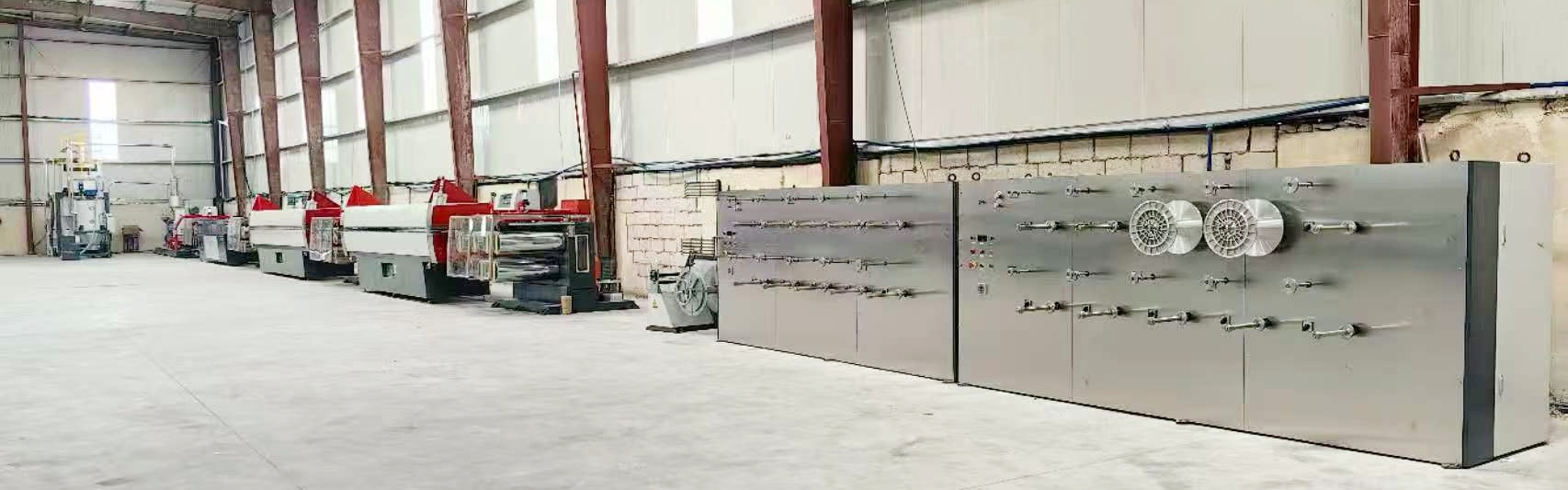

Detail Photos Of Plastic Extruders
If you need Polypropylene Polyethylene PP PET Tape Mono Extrusion Line price and video, Please contact us at any time!
