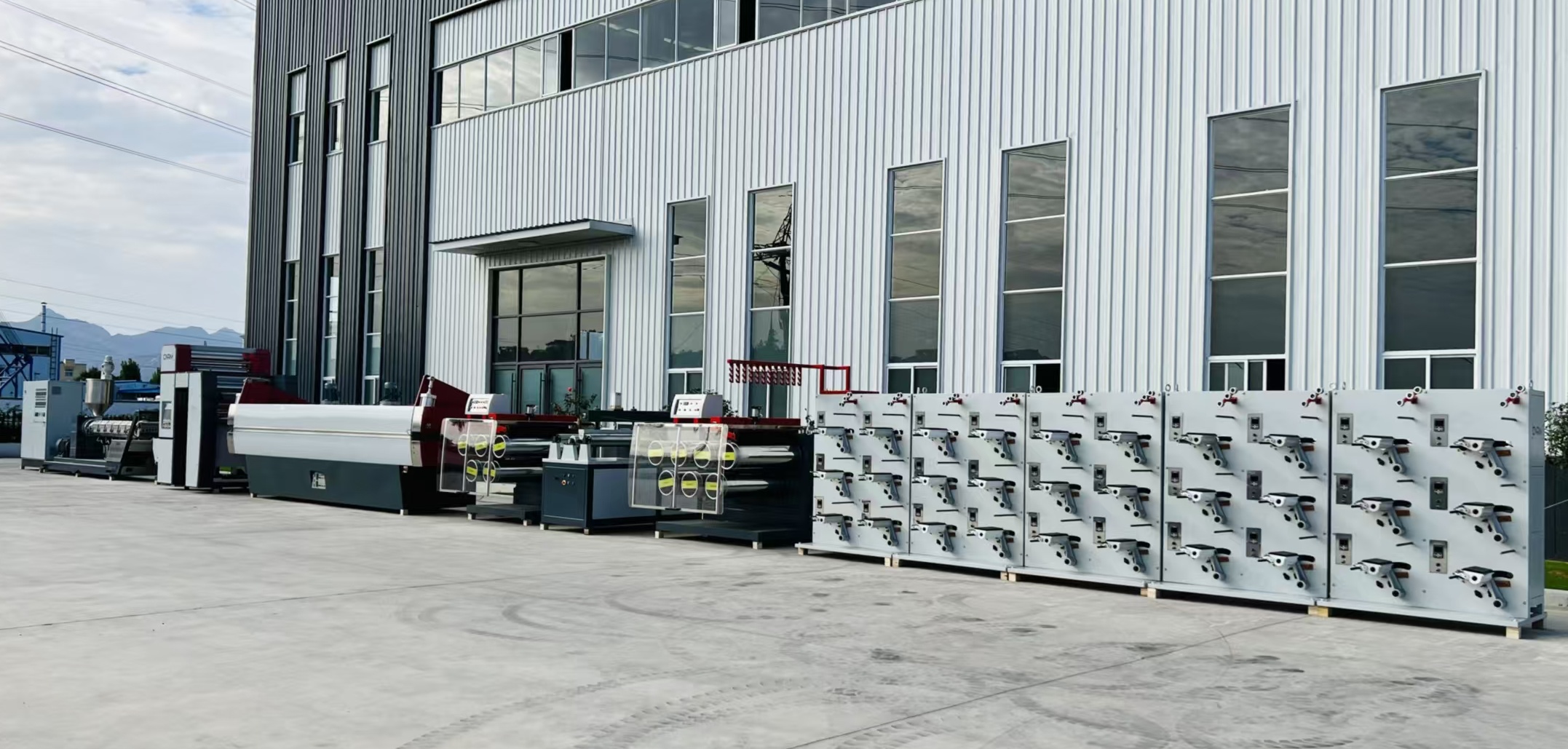

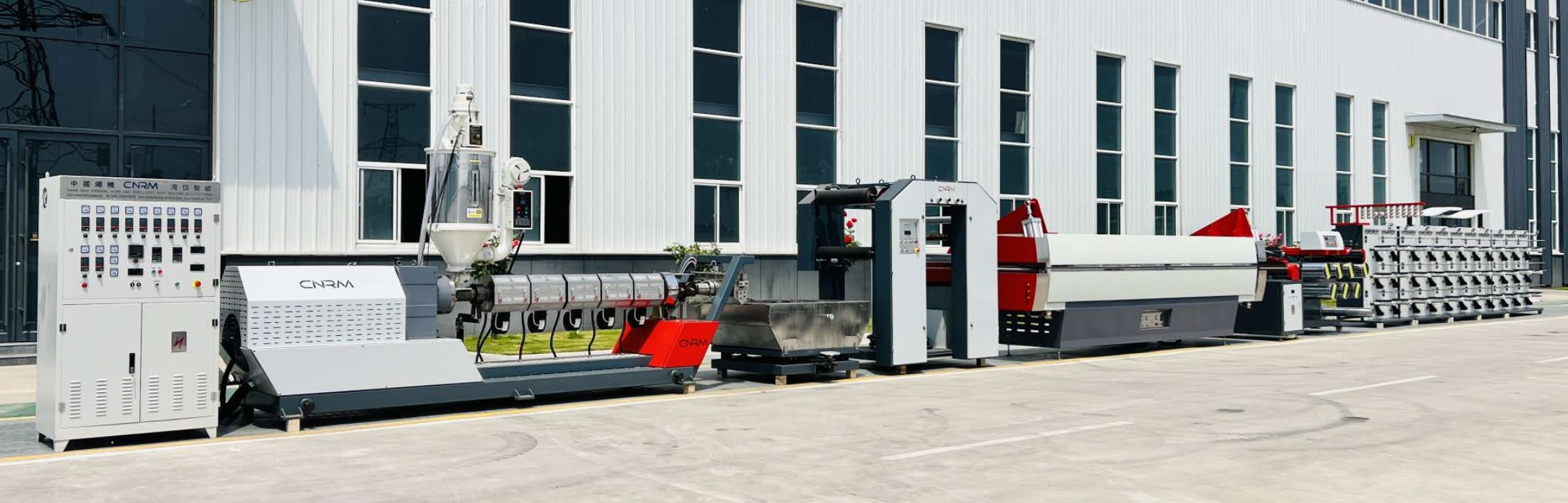

Industrial PP HDPE Raffia Mesh Bag Leno Bag & Shade Net Extrusion Line
Overview
Our Raffia Mesh Bag Leno Bag&Shade Net Extrusion Line is a professional industrial extrusion solution specially developed for producing plastic raffia filament used in mesh bag and leno bag manufacturing. This high-efficiency extrusion line integrates plasticizing, extrusion, stretching and winding into one complete process, ideal for small and medium factories engaged in woven bag, raffia mesh bag and leno bag production. With stable running performance and simple operation, it has become reliable core equipment for plastic woven material processing.
Raw Materials
This raffia extrusion line has strong material compatibility, suitable for common plastic raw materials:
- PP virgin pellets and recycled PP particles
- HDPE / LDPE plastic materials
- Modified raw materials for making mesh bag and leno bag raffia filament
It can make qualified raw yarn for various specifications of mesh bag and leno woven bag,shade net, effectively reducing production cost while keeping stable filament quality.
Item | HDSLJ-70×33 | HDSLJ-80×33 | HDSLJ-90×33 | HDSLJ-100×33 |
T-die width | 600mm | 900mm | 1000mm | 1200mm |
Screw diameter | 70mm | 80mm | 90mm | 90mm |
Fiber type | PP/PE/HDPE Tape, Raffia Twine |
Ratio of L/D | 33:1 | 33:1 | 33:1 | 33:1 |
Rotation speed of screw | 20-90r/min | 20-90r/min | 20-90r/min | 20-90r/min |
Drawing ratio | 4-10 | 4-10 | 4-10 | 4-10 |
Cooling mode | Water cooling | Water cooling | Water cooling | Water cooling |
Power consumption | 100kw/30kw | 130kw/40kw | 150kw/50kw | 220kw/60kw |
Max output capacity | 1200kg/24h | 2000kg/24h | 3000kg/24h | 4000kg/24h |
Machine weight | 10tons | 12 tons | 15 tons | 18 tons |
Machine dimension(L×W×H) | 25×2×2m | 26×2.2×2m | 27×2.2×2m | 28×2.2×2m |
Production Performance
As a dedicated leno bag extrusion line, the machine features adjustable extrusion speed and flexible filament specification. The whole line runs continuously with uniform plasticizing and stable filament diameter, ensuring high tensile strength and good toughness of finished raffia. It supports mass production for standard and customized mesh bag and leno bag requirements, meeting large-volume order demands of woven bag factories.
Key Features
- Adopts optimized screw and barrel design, ensuring even melting and smooth extrusion for raffia filament.
- One machine fits three main products: raffia mesh bag, leno bag,shade net, wide application range and high return on investment.
- Reasonable line layout, easy installation, simple operation and convenient daily maintenance.
- Low energy consumption and low material wastage, cost-effective for long-term industrial production.
- Stable long-run operation, less failure rate, suitable for continuous factory batch production.
Application

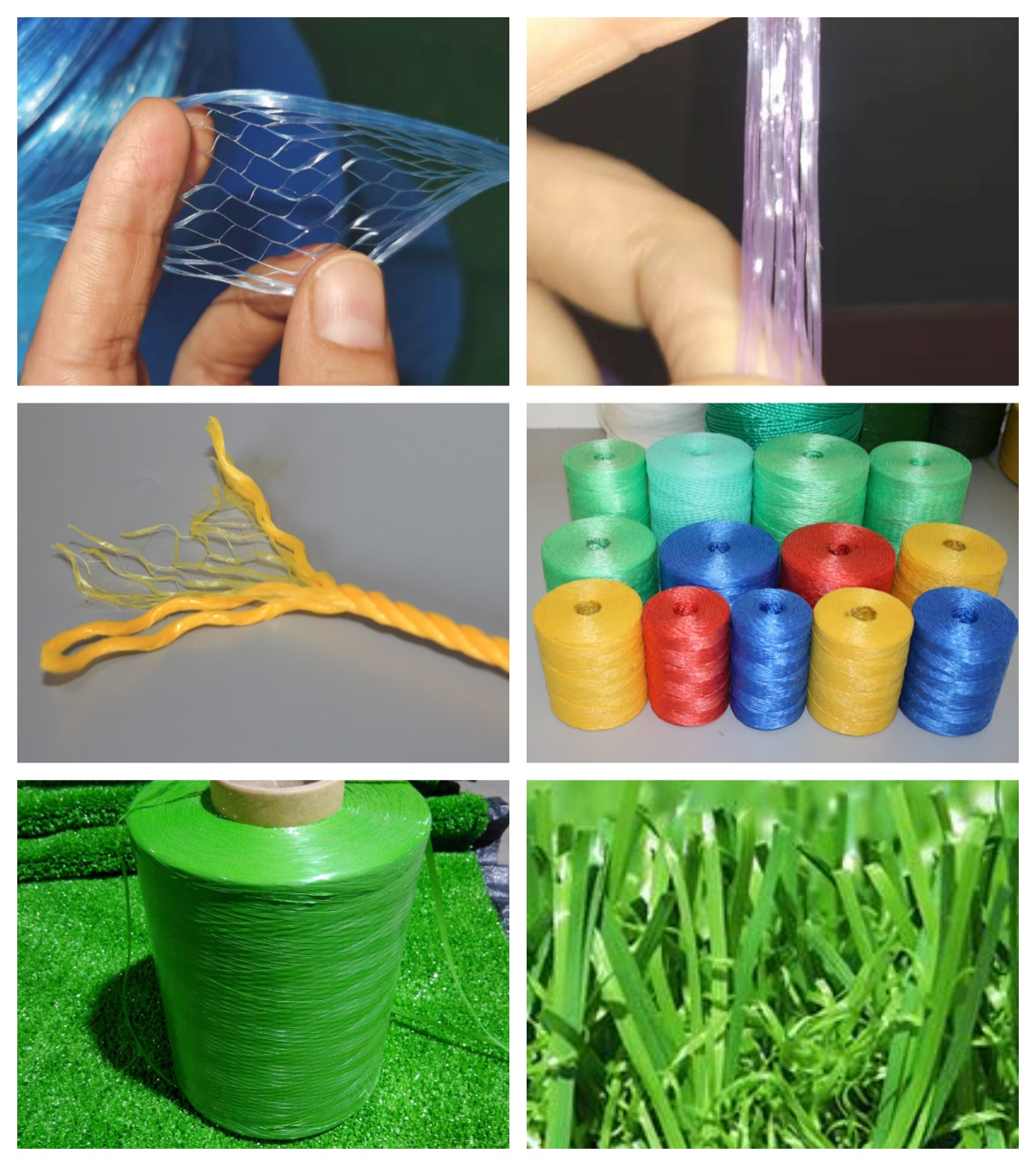

The raffia produced by this Raffia Mesh Bag Leno Bag &Shade Net Extrusion Line is widely used for weaving:
- Vegetable and fruit mesh bag
- Agricultural packing leno bag
- Industrial packaging woven bag
- All kinds of plastic raffia woven packaging products
It is the ideal extrusion equipment for agricultural packaging, industrial packaging and plastic woven product manufacturers
