Brief Introduction-Rope Spool Winder

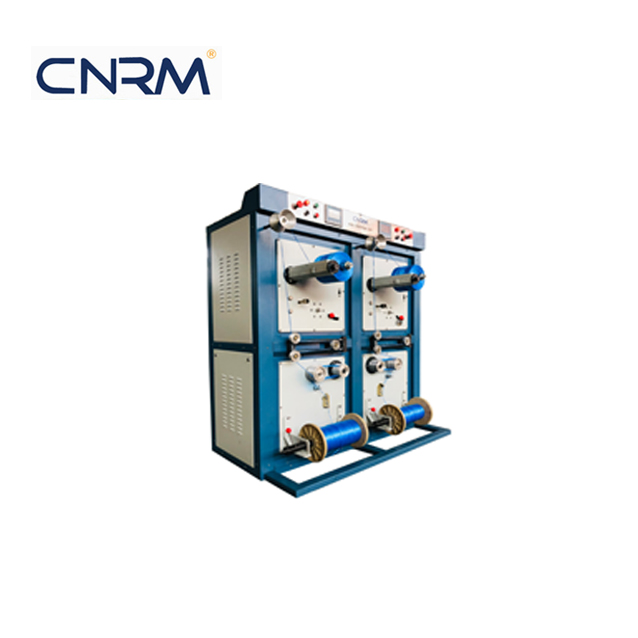

HDSW-H02 Rope Twine High Speed Spool Winder Machine is mainly for yarn, twine,rope rewinding into spool shape, include 6inch ,8inch,10inch spool size.
Technical data-High Speed Spool Winder Machine
Model | HDSW-H02 |
Twine size | 5,000d-70,000d |
Traverse distance | 6inch,8inch,10inch,12inch |
Winding tension | constant,controlled by electronic broker |
Take-up spool weight | 1kg-10kg |
Motor rated speed | 1500rpm |
Max output power | 6kw |
Input power | 7kw |
Max winding speed | 400m/min |
HMI system | Siemens |
Machine weight | 750kg |
Machine dimension | 1504×927×1680mm |
Performance & advantages-High Speed Spool Winder
HMI+PLC system
Touch screen change of production parameters
For production of rope yarns,tying twine and baler twine
High quality tubeless and tube package
Individual settings for each head
Adjustable length counter for automatic stop at pre-set length
Motor with inverter drive for each head
If you need HDSW-H02 6" 8" 6 inch High speed Bobbin/Spool winder for tubeless PP fibrillated Raffia Package video and price, welcome your inquiry!
