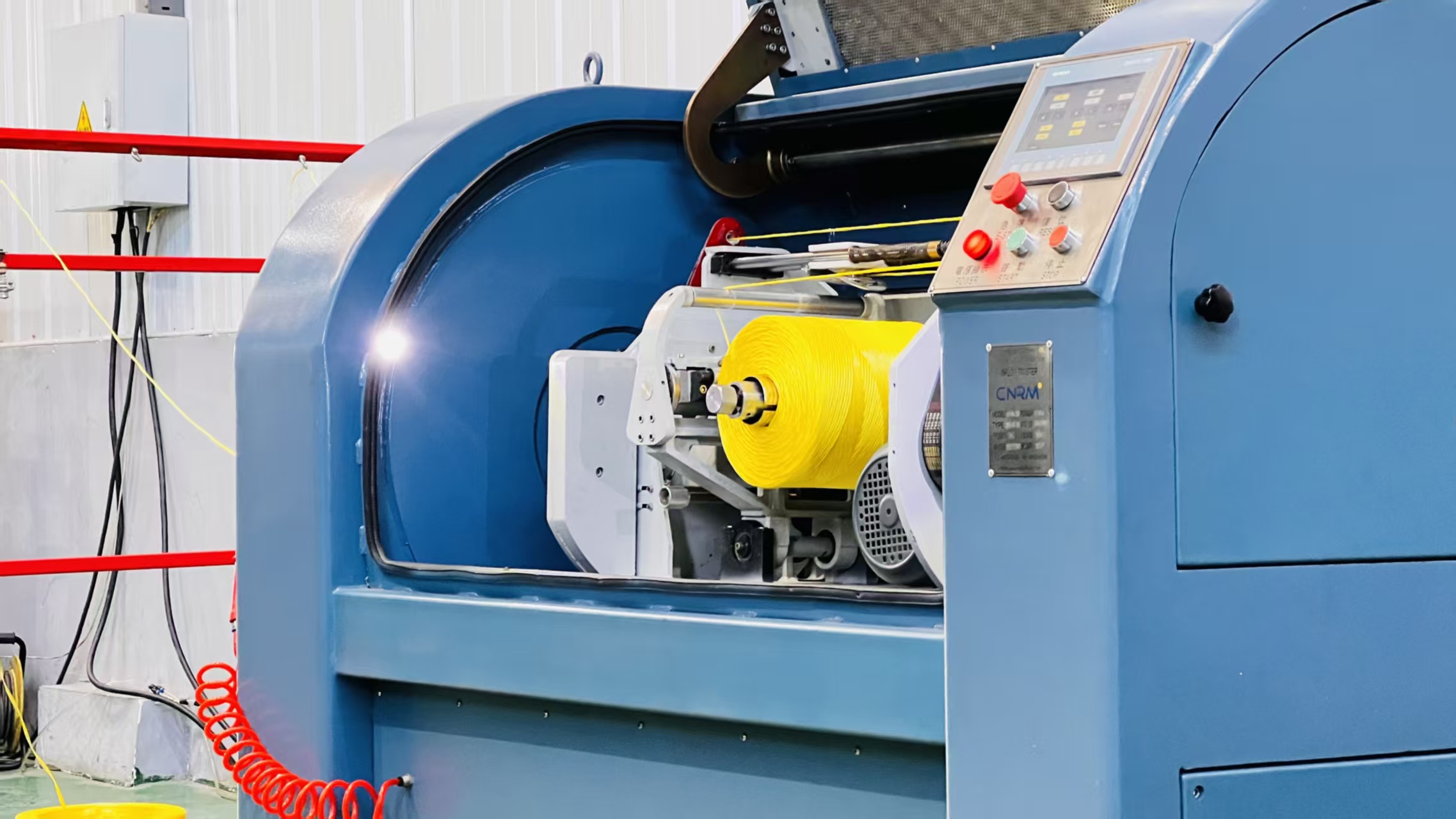

Two-for-one Twister Winder For Precision Cross Ø12'X H.12'Bobbin
Brief Introduction-Two-for-one Twister Winder For Precision Cross Ø12'X H.12'Bobbin
This model represents the final iteration of the CNRM series twister winder. Adopting the two-for-one twisting mechanism, it is engineered to manufacture twisted yarns and twines from natural, synthetic or blended fibers, with a linear density coverage ranging from 5,000 to 120,000 deniers.
Fed from yarn spools and bobbins, the unit accommodates spool production sizes from a minimum of 4”×4” up to a maximum of 12”×12”. It is fitted with AC main drive motors and features dual mandrel configurations: a multi-core design for spools with inner tubes, and structure for tubeless spool forming.
Traverse screw assemblies are offered in specifications spanning 4 inches to 12 inches.
Technical data-Rope Twine Twisting Machine
Item | Specification |
Model | HDST-H01 |
Maximum output power of the motor | 13kw |
Spool size | 8inch，10inch，12inch |
Applicable yarn range | 18,000d-70,000d |
Twist range | 20-135tpm |
Twist direction | S or Z |
Flyer rotation | 3000rpm |
Production capacity | 150m/min-200m/min |
Main electric part | Siemens |
Transmission type | Synchronous belt |
Machine dimensions（L×W×H） | 2350×1050×1450mm |
Machine weight | 1330kg |
Performance & advantages-Two for One Twister
Suitable for in-line system
For production of rope yarns,tying twine and baler twine
For plying pre-twsited yarns
High quality tubeless and tube package
HMI+PLC system
Adjustable length counter for automatic stop at pre-set length
If you need Two-for-one Twister Winder For Precision Cross Ø12'X H.12'Bobbin video and price, welcome your inquiry!
